ELU Blender Exporter

[Phantom*]

Warning: I have never played Gunz Online.

Installation: (Pictorial Steps http://forum.ragezone.com/f311/elu-b...7/#post4297496)

1. Download and install Blender 2.46+ from Blender.org
2. Download and install Python 2.5.x from Python.org (Windows Users)
3. Copy gunz_export.py into your Blender scripts directory.

Usage:

1. Click File > Export > Gunz (*.elu)...
2. Select *.elu file name
3. Click Ok
4. Select version (I will explain this later)

License:

MIT License

Source:

Copy and save as gunz_export.py

#!BPY

# Copyright (c) 2008-2009 Peter S. Stevens
#
# Permission is hereby granted, free of charge, to any person obtaining a copy
# of this software and associated documentation files (the "Software"), to deal
# in the Software without restriction, including without limitation the rights
# to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
# copies of the Software, and to permit persons to whom the Software is
# furnished to do so, subject to the following conditions:
#
# The above copyright notice and this permission notice shall be included in
# all copies or substantial portions of the Software.
#
# THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
# IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
# FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
# AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
# LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
# OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
# THE SOFTWARE.


"""
Name: 'GUNZ (*.elu)...'
Blender: 246
Group: 'Export'
Tooltip: 'Export GUNZ *.elu game files'
"""

__author__ = 'Peter S. Stevens'
__email__ = 'pstevens:cryptomail*org'
__url__ = ('blender', 'elysiun', 'Project homepage, http://www.ragezone.com/')
__version__ = '09.12.00'
__bpydoc__ = """ \
This script exports GUNZ *.elu game files.
"""

import Blender
import BPyMesh
import BPyObject
import struct


LEFT_TO_RIGHT = Blender.Mathutils.Matrix([-1.0, 0.0, 0.0, 0.0],
                                         [0.0, 0.0, 1.0, 0.0],
                                         [0.0, 1.0, 0.0, 0.0],
                                         [0.0, 0.0, 0.0, 1.0])


def blender_to_elu_name(name):
    if name.startswith('Bip01 ') == True:
        if name.endswith('.L'):
            return "%s %s" % ('Bip01 L', name[6:-2])

        if name.endswith('.R'):
            return "%s %s" % ('Bip01 R', name[6:-2])

    return name


def elu_sort_by_parent(a, b):
    if a.getParent() == b:
        return 1
    elif a == b.getParent():
        return -1

    return 0


def elu_recursive_bone_insert(bones, bone):
    index = len(bones)

    if bone not in bones:
        if bone.hasParent() == True:
            if bone.parent in bones:
                index = bones.index(bone.parent) + 1
            else:
                index = elu_recursive_bone_insert(bones, bone.parent)

        bones.insert(index, bone)

        index = index + 1

    return index


def elu_triangulate_mesh(mesh):
    if any(len(face.verts) == 4 for face in mesh.faces):
        scene = Blender.Scene.GetCurrent()

        old_mesh_mode = Blender.Mesh.Mode()

        Blender.Mesh.Mode(Blender.Mesh.SelectModes['FACE'])

        mesh.sel = True

        temporary_mesh_object = scene.objects.new(mesh)

        mesh.quadToTriangle(0)

        old_mesh_mode = Blender.Mesh.Mode(old_mesh_mode)

        scene.objects.unlink(temporary_mesh_object)

        Blender.Mesh.Mode(old_mesh_mode)


def elu_write_material(file_object, material, index):
    file_object.write(struct.pack('<2I', index, 0xFFFFFFFF))

    file_object.write(struct.pack('<3f', *material.getRGBCol()))
    file_object.write(struct.pack('<f', material.getAlpha()))
    file_object.write(struct.pack('<3f', *material.getMirCol()))
    file_object.write(struct.pack('<f', material.getAlpha()))
    file_object.write(struct.pack('<3f', *material.getSpecCol()))
    file_object.write(struct.pack('<f', material.getAlpha()))
    file_object.write(struct.pack('<f', material.getSpec()))
    file_object.write(struct.pack('<f', material.getEmit()))


def elu_write_texture(file_object, texture, version):
    image = texture.getImage()

    if image is None:
        raise AttributeError, "Texture (%s) has no image." % texture.getName()

    image_file_name =  Blender.sys.basename(image.getFilename())

    image_file_name = image_file_name.replace('.dds', '')

    image_name = ''

    if version == 0x5004 or version == 0x5005:
        image_name = struct.pack('<40s', image_file_name)
    elif version == 0x5006 or version == 0x5007:
        image_name = struct.pack('<256s', image_file_name)

    file_object.write(image_name)

    file_object.write(image_name)

    file_object.write(struct.pack('<2I', 1, 0)) # double sided: should check face mode for Blender.Mesh.FaceModes.TWOSIDE

    if version == 0x5007:
        if texture.useAlpha != 0: #(texture.fields & Blender.Texture.USEALPHA) == Blender.Texture.USEALPHA:
            file_object.write(struct.pack('<I', 100))
        else:
            file_object.write(struct.pack('<I', 0))


def elu_write_mesh(file_object, mesh, parent_mesh, world_matrix, local_matrix, material_index, version):
    file_object.write(struct.pack('<40s', blender_to_elu_name(mesh.name)))

    if parent_mesh is not None:
        file_object.write(struct.pack('<40s', blender_to_elu_name(parent_mesh.name)))
    else:
        file_object.write(struct.pack('<40x'))

    file_object.write(struct.pack('<4f', *world_matrix[0]))
    file_object.write(struct.pack('<4f', *world_matrix[1]))
    file_object.write(struct.pack('<4f', *world_matrix[2]))
    file_object.write(struct.pack('<4f', *world_matrix[3]))

    file_object.write(struct.pack('<44x'))

    file_object.write(struct.pack('<4f', *local_matrix[0]))
    file_object.write(struct.pack('<4f', *local_matrix[1]))
    file_object.write(struct.pack('<4f', *local_matrix[2]))
    file_object.write(struct.pack('<4f', *local_matrix[3]))

    file_object.write(struct.pack('<I', len(mesh.verts)))

    for vertex in mesh.verts:
        file_object.write(struct.pack('<3f', *vertex.co))

    file_object.write(struct.pack('<I', len(mesh.faces)))

    for face in mesh.faces:
        file_object.write(struct.pack('<3I', *[vertex.index for vertex in face.verts]))

        if mesh.faceUV == 1:
            for uv in face.uv:
                file_object.write(struct.pack('<2f', uv.x, float(1 - uv.y)))

                file_object.write(struct.pack('<4x'))
        else:
            for x in xrange(3):
                file_object.write(struct.pack('<12x'))

        file_object.write(struct.pack('<2I', 1, 1))
#        file_object.write(struct.pack('<8x'))

    if version >= 0x5005 and version <= 0x5007:
        for face in mesh.faces:
            file_object.write(struct.pack('<3f', *face.no))

            for vertex in face.verts:
                file_object.write(struct.pack('<3f', *vertex.no))

        if mesh.vertexColors == 0:
            file_object.write(struct.pack('<I', 0))
        else:
            vertex_colors = []

            for vertex in mesh.verts:
                vertex_colors.append((1.0, 1.0, 1.0))

            for face in mesh.faces:
                for i, vertex in enumerate(face):
                    face_color = face.col[i]

                    red = float(face_color.r) / 255.0
                    green = float(face_color.g) / 255.0
                    blue = float(face_color.b) / 255.0

                    vertex_colors[vertex.index] = (red, green, blue)

            file_object.write(struct.pack('<I', len(vertex_colors)))

            for vertex_color in vertex_colors:
                file_object.write(struct.pack('<3f', *vertex_color))

        file_object.write(struct.pack('<I', material_index))

        if len(mesh.getVertGroupNames()) == 0:
            file_object.write(struct.pack('<I', 0))
        else:
            file_object.write(struct.pack('<I', len(mesh.verts)))

            for vertex in mesh.verts:
                vertex_influences = mesh.getVertexInfluences(vertex.index)

                vertex_weights = []

                for vertex_group, vertex_weight in vertex_influences:
                    file_object.write(struct.pack('<40s', blender_to_elu_name(vertex_group)))

                    vertex_weights.append(vertex_weight)

                if len(vertex_weights) < 4:
                    file_object.write(struct.pack("<%dx" % ((4 - len(vertex_weights)) * 40)))

                file_object.write(struct.pack("<%df" % len(vertex_weights), *vertex_weights))

                if len(vertex_weights) < 8:
                    file_object.write(struct.pack("<%dx" % ((8 - len(vertex_weights)) * 4)))

                file_object.write(struct.pack('<I', len(vertex_weights)))

                file_object.write(struct.pack('<48x'))
    else:
        file_object.write(struct.pack('<4x'))
        file_object.write(struct.pack('<I', material_index))


def elu_bone_to_mesh(bone):
    mesh = Blender.Mesh.Primitives.UVsphere(8, 8, 2.0)

    mesh_object = Blender.Object.Get(bone.name)

    if mesh_object is None:
        mesh_object = Blender.Object.New('Mesh', bone.name)
    else:
        mesh_object.clrParent()

    mesh_object.link(mesh)

    mesh.name = bone.name

    mesh.update()

    world_matrix = bone.matrix['ARMATURESPACE'].copy()

    mesh_object.setMatrix(world_matrix)

    if bone.hasParent() == True:
        mesh_object_parent = Blender.Object.Get(bone.parent.name)

        if mesh_object_parent is not None:
            mesh_object_parent.makeParent([mesh_object])

    return mesh_object


def elu_export(file_path):
    mesh_objects = []
    armature_objects = []
    meshes = []
    materials = []
    material_textures = []
    mesh_parents = []
    mesh_world_matrices = []
    mesh_local_matrices = []
    mesh_material_indices = []
    temporary_mesh_objects = []

    version = Blender.Draw.Create(4)

    block = [('Version: ', version, 4, 7)]

    option = Blender.Draw.PupBlock('Export Options', block)

    version.val += 0x5000

    scene = Blender.Scene.GetCurrent()

    scene.update(0)

    selected_objects = Blender.Object.GetSelected()

    if len(selected_objects) == 0:
        raise IndexError, 'No objects selected.'

    for selected_object in selected_objects:
        if selected_object.getType() == 'Mesh':
            for derived_object, derived_object_world_matrix in BPyObject.getDerivedObjects(selected_object, False):
                if derived_object not in mesh_objects:
                    mesh_objects.append(derived_object)
        elif selected_object.getType() == 'Armature':
            armature_objects.append(selected_object)

    if len(mesh_objects) == 0:
        raise IndexError, 'No mesh objects selected.'
    else:
        mesh_objects.sort(elu_sort_by_parent)

    if len(armature_objects) == 1:
        armature = armature_objects[0].getData()

        bones = []

        for bone in armature.bones.values():
            elu_recursive_bone_insert(bones, bone)

        for bone in bones:
            mesh_object = elu_bone_to_mesh(bone)

            scene.objects.link(mesh_object)

            temporary_mesh_objects.append(mesh_object)

        if len(temporary_mesh_objects) > 0:
            mesh_objects.extend(temporary_mesh_objects)

    for mesh_object in mesh_objects:
        mesh = mesh_object.getData(mesh = True)

        elu_triangulate_mesh(mesh)

        world_matrix = mesh_object.getMatrix('worldspace').copy()
        world_matrix *= LEFT_TO_RIGHT

        local_matrix = mesh_object.getMatrix('localspace').copy()
        local_matrix *= LEFT_TO_RIGHT

#        BPyMesh.meshCalcNormals(mesh)
        mesh.calcNormals()

        meshes.append(mesh)

        mesh_world_matrices.append(world_matrix)

        mesh_local_matrices.append(local_matrix)

        mesh_object_parent = mesh_object.getParent()

        if mesh_object_parent is not None and mesh_object_parent in mesh_objects:
            mesh_object_index = mesh_objects.index(mesh_object_parent)

            mesh_parents.append(meshes[mesh_object_index])

            if mesh_object.name.startswith('Bip') == False:
                mesh_world_matrices[-1] = mesh_world_matrices[mesh_object_index] * mesh_world_matrices[-1]
        else:
            mesh_parents.append(None)

    for mesh in meshes:
        mesh_materials = mesh.materials

        if len(mesh_materials) > 0:
            material = None

            try:
                material = (mm for mm in mesh_materials if mm is not None).next()
            except StopIteration:
                pass
            else:
                material_index = 0

                if material not in materials:
                    textures = material.getTextures()

                    if len(textures) == 0:
                        raise AttributeError, "Material (%s) does not contain any textures." % material.getName()
                    else:
                        texture = textures[0].tex

                        material_textures.append(texture)

                    materials.append(material)

                    material_index = len(materials) - 1
                else:
                    material_index = materials.index(material)

                mesh_material_indices.append(material_index)
        else:
            if mesh_object.name.startswith('Bip') == True:
                mesh_material_indices.append(0)
            else:
                raise AttributeError, "Mesh (%s) has no assigned materials." % mesh.name

    file_object = None

    try:
        file_object = open(file_path, 'wb')

        file_object.write(struct.pack('<I', 0x0107F060))

        file_object.write(struct.pack('<I', version.val))

        file_object.write(struct.pack('<I', len(materials)))

        file_object.write(struct.pack('<I', len(mesh_objects)))

        for x, material in enumerate(materials):
            elu_write_material(file_object, material, x)
            elu_write_texture(file_object, material_textures[x], version.val)

        for x, mesh in enumerate(meshes):
            elu_write_mesh(file_object, mesh, mesh_parents[x], mesh_world_matrices[x], mesh_local_matrices[x], mesh_material_indices[x], version.val)

        for temporary_mesh_object in temporary_mesh_objects:
            temporary_mesh = temporary_mesh_object.getData(mesh = True)
#            temporary_mesh = BPyMesh.getMeshFromObject(temporary_mesh_object)

            scene.objects.unlink(temporary_mesh_object)

            if temporary_mesh.users == 0:
                temporary_mesh.faces = None
                temporary_mesh.verts = None

        scene.update(0)
    except IOError, (error_number, error_message):
        Blender.Draw.PupMenu("Error%%t|I/O error(%d): %s." % (error_number, error_message))
#    except Exception, error:
#        Blender.Draw.PupMenu("Error%%t|%s." % error)
    finally:
        if file_object is not None:
            file_object.close()


def main():
    def elu_file_selector(file_path):
        if file_path and Blender.sys.exists(file_path):
            option = Blender.Draw.PupMenu("Warning: The file %s exist. Replace it?%%t|Yes|No" % file_path)

            if option != 1:
                return
#        try:
        elu_export(file_path)
#        except Exception, error:
#            Blender.Draw.PupMenu("Error%%t|%s." % error)

    Blender.Window.FileSelector(elu_file_selector, 'Ok', Blender.sys.makename(ext='.elu'))


if __name__ == "__main__":
    main()

Collaboration:

Check out the list of other importers and exporters RZ Project Listing

[MentaL]

[wesman2232]

wow first post, this is awesome!
wish I can code xD

[cerealnp]

Good luck with it!

[eele]

This is really nice!! Go on and Good luck with it!!

[RepublicOfAstra]

Bump. Needs moar exposure.

[Adriann]

Bump I want this!

[qITIp]

Why aren't people flocking to this... I mean hell, this could be THE break through on gunz >_>

[Nobody666]

Im watching it, just not making a scene out of it.

Actually planning to get into it myself, just to lazy as it is now.

[sari4ever]

:3 lazy nobody :3

[STEALHEART]

oh fantastic, u'r so good ;D

[Phantom*]

Bump :P

I did not write much code from my previous post due to a transition to a new development system and OS upgrade (Fedora 10) with all the caveats they brought forth. However, I did manage to fix some bugs and introduce a version (I call it version when it possibly is anything but that...) selector.

Latest source code: http://pastebin.com/m79d435e3

Using the importer as a test bed everything should work this time around.

I've exported a simple cube in version 4 and 5 with a skybox texture and since I don't play the game or use Windows I need people to test it out for me.

http://www.speedyshare.com/847510720.html Old!
http://www.speedyshare.com/449793309.html Fix?

For simplicity lets call it a grenade and extract to "model/weapon/grenade/" and replace the grenade entry in "/model/weapon.xml" with something like below. Again, I know absolutely nothing about the game except for what I've done in regards to the ELU files, and I expect others to fill in whatever is missing.

Cube V4 Test (Search and replace grenade01)

<AddWeaponElu name="grenade01" weapon_motion_type="6" weapon_type="7">
<AddBaseModel name="Cube" filename="model/weapon/grenade/cube_v4.elu"/>
</AddWeaponElu>

Cube V5 Test (Search and replace grenade01)

<AddWeaponElu name="grenade01" weapon_motion_type="6" weapon_type="7">
<AddBaseModel name="Cube" filename="model/weapon/grenade/cube_v5.elu"/>
</AddWeaponElu>

Report back anything be it success, failure, crash, screenshots, etc.

[sari4ever]

i would test it but there is no server would let me :S

[Mark]

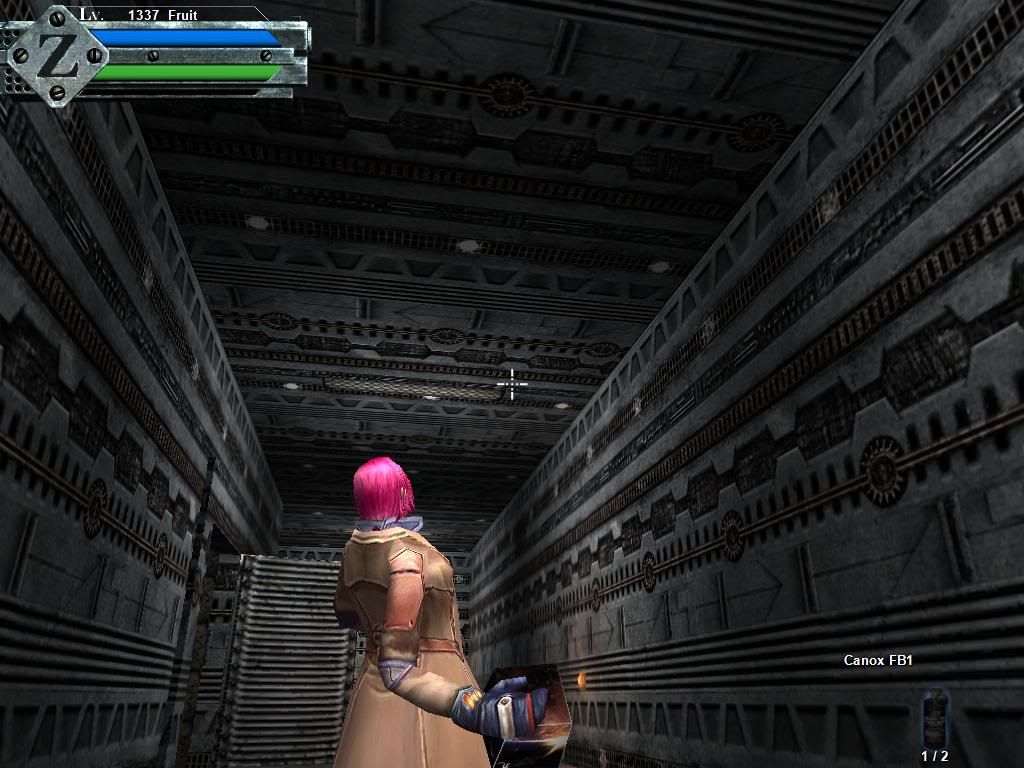

I tested your cube, here are some screenshots.

As for the exporter code, when I save it in my .scripts directory for blender (The same directory as gunz_import.py), no export option appears for Gunz. Do you have a solution for this?

Thanks, for your time spent on this project, and the work youve produced.

[peaceofpi]

Holy shit holy shit holy shit!

I tested the cube as well (image), and it seems like it's only textured on the inside with see through outside walls.

I need to learn how to use Blender. After enough poking around I got a .map turned into a .3ds and imported that and tried to make an ELU out of it. Unfortunately I have no idea what I'm doing at that part. From what I've gathered, I need to learn how to give it a texture.

[Phantom*]

I tested your cube, here are some screenshots.

Thank you for your time. Cherish this moment and those screenshots because you're now apart of history :P

As for the exporter code, when I save it in my .scripts directory for blender (The same directory as gunz_import.py), no export option appears for Gunz. Do you have a solution for this?

Thanks, for your time spent on this project, and the work youve produced.

Looks like you did everything correct but just incase, copy and paste the code into any text editor and save as "gunz_export.py" and place into your ".blender/scripts" directory. If it persists delete "Bpymenus" file in your ".blender" directory.

Holy shit holy shit holy shit!

Thanks for the enthusiasm. I can picture you jumping up and down.

I tested the cube as well (image), and it seems like it's only textured on the inside with see through outside walls.

Yes I've noticed it from Aristrum's screenshots. A quick fix with the cube model in Blender should fix that :P Try it... http://www.speedyshare.com/449793309.html

[ReyRey/BonaFide]

You know those screenshots are the first screenshots of an actual changed model. You sir are god. You just accomplished a task people have been trying to make for 5+ years lol.

[wesman2232]

holy crap, this is a most awesome breakthrough in the history of GunZ :D
You sir are a god to me now xD
I want to add the box in my server :D
EDIT : Do you have a new .py to give us to test our own models?

[Mark]

Looks like you did everything correct but just incase, copy and paste the code into any text editor and save as "gunz_export.py" and place into your ".blender/scripts" directory. If it persists delete "Bpymenus" file in your ".blender" directory.

Heh, I did this, and still under the File > Export menu, Gunz does not show up.

[Phantom*]

...You sir are god.

...You sir are a god to me now xD

I'm only a mere mortal programmer.

...I want to add the box in my server :D

Don't waste your time.

...Do you have a new .py to give us to test our own models?

Check first post.

Heh, I did this, and still under the File > Export menu, Gunz does not show up.

I don't know what else to do other then to uninstall/reinstall. I remember there was an option to update the menus but I can't seem to find it.

[Nobody666]

hmm good job on getting it to work, quite impressive.

[wesman2232]

Don't waste your time.

I'm adding it anyway. It shall be a very special item. the first .elu model made :D

[Adriann]

omg *blowjob* imma test right now but not the cube :o

[Mark]

Oh, i tested your new cube, it shows up blank for me.

[Xefier]

Were is the Scripts Directory? Is it just within the Blendor folder in program files? Also the "Update Menus" can be found if u click the top left button (Window type) with the big i (user preferences)(or what ever U have it on) and then change it to "Scripts Window" (The snake one) click Scripts/Update Menus.

EDIT:
Nvm found directory, It was in the application data directory for Blendor, So I reinstalled it so the scripts would go into the program files directory cause I felt like it.

EDIT:
Hmm I get an error when trying to import using your importer. I downloaded the newest one on the list. I have python 2.5.2 I believe
Error = "Python script error: check console" **Trying to import newest dual swords from ijji (maybe too new of an elu)

EDIT:
I imported the Golden Dragon Sword elu but then it says it couldnt find the dds (which was right beside it), It exported but as a 8kb file instead of like 14 kb (original), and ingame the model fails to load (that white crazy lines stuff when the weapon.xml entry succesfully loads but the elu doesnt)
Im gonna try importing and exporting different elu versions. Like the GDS is the version before they introduced alpha information in their elus, Maybe Ill try one that supports alpha, etc. But thats tommorow. (good night)
** I also tried exporting the GDS with a random sphere attached to it but it exported as a 80 byte elu>.>

[Adriann]

so what are the steps that u took 2 make the cube? just made it then? exported gunz .elu? and saved? thats what i did and it saved as .elu but i have no where to test :| do i really have 2 edit zitem? :s
