[CentOS] Setting up your Aura Kingdom Server

**Jaushkin Peter** · 13-02-16

Ohh God!
I tried everything that was possible.
But I will begin setup of the server from the very beginning.

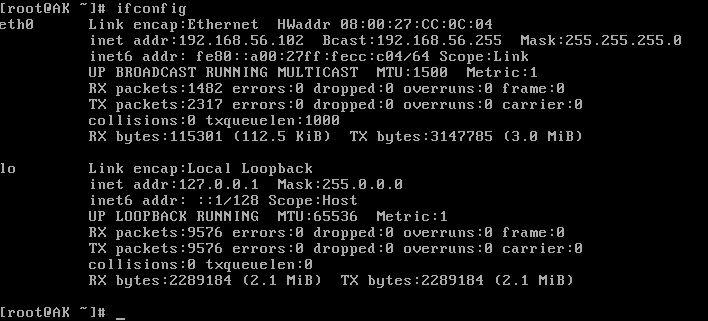

1. Ifconfig.

Here it is possible to see, that my IP address is 192.168.56.102

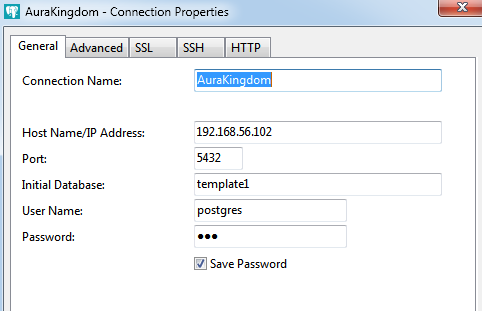

2. [Navicat]

2.1 FFAccount --> worlds

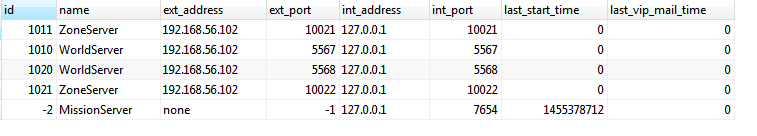

2.3 FFDB1 --> serverstatus

3. We modify the file connect.ini:
Server=192.168.56.102,6543

4. Now we change settings on the server:

4.1 GatewayServer --> setup.ini

[Common]AccountDBIP=127.0.0.1
AccountDBName=FFMember
AccountDBUser=postgres
AccountDBPW=123
BillingGatewayPort=5560
HttpServerPort=7878

4.2 HTTPAServer --> setup.ini

BillingGatewayIP=127.0.0.1HttpServerPort=7878
MaxThreadNum=100
IDBillingURL=127.0.0.1/oauth2/oauth2_new.php
IDGameID=FFDB
IDChkPointThreadNum=5
IDBuyItemThreadNum=5
IDLoginThreadNum=10

4.3 LoginServer --> setup.ini

[LoginServer]LoginServerPort=6543

4.4 TicketServer --> setup.ini

TicketServerIP=192.168.56.102
TicketServerPort=7777

4.5 WorldServer101 --> setup.ini

[WorldServer]
WorldServerID=1010

4.6 WorldServer102 --> setup.ini

[WorldServer]
WorldServerID=1020

4.7 ZoneServer101 --> setup.ini

[ZoneServer]ZoneServerID=1011
ZoneServerLogLevel=1
ZoneServerAssert=0
GMToolPort=10320
CGIPort=20060
CGIKey=0KjaM85BjfqjA

4.8 ZoneServer102 --> setup.ini

[ZoneServer]ZoneServerID=1021
ZoneServerLogLevel=1
ZoneServerAssert=0
GMToolPort=10320
CGIPort=20060
CGIKey=0KjaM85BjfqjA

4.9 setup.ini

[Common]GameDBIP=127.0.0.1
GameDB=FFDB1
GameDBUser=postgres
GameDBPassword=123
Language=X
Locate=TW
LogFile=Test.log
AccountDBIP=127.0.0.1
AccountDBName=FFAccount
AccountDBUser=postgres
AccountDBPW=123
TicketServerIP=127.0.0.1
TicketServerPort=18624
BillingGatewayIP=127.0.0.1
BillingGatewayPort=5560
BillingGatewayPaymentIP=127.0.0.1
BillingGatewayPaymentPort=5560
BillingGatewayWorldIP=127.0.0.1
BillingGatewayWorldPort=5560
PlayerRoomWorldID=1010
PingAlive=1
CrossWorldID=1020
TerritoryWorldID=1020
ColosseumWorldID=1020
FightZoneWroldID=1020
MaintenanceDate=2
RankAward=1
NAT=1
AchievementGroupCheck=0
MaxCharacterNumber=12

[MissionServer]
ReserveDeletedCharDays=90
DBAgentSavePeriod=20
MissionServerLogLevel=1
MissionServerAssert=0
GoldRange=10000.50000.100000.200000.500000.1000000.2000000.3000000.10000000.100000000
RecordGoldvalue=1000000

[WorldServer]
LoadServerStatus=1
WorldServerLogLevel=1
WorldServerAssert=0
FarmWorldID=0

[ZoneServer]
HeartBeat=1

In search of a problem I decided to dig more deeply: /etc/sysconfig/iptables

.....
-A INPUT -m state --state NEW -m tcp -p tcp --dport 22 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 80 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 5432 -j ACCEPT
# Aura Kingdom
-A INPUT -m state --state NEW -m tcp -p tcp --dport 5567 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 5568 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 6543 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 10021 -j ACCEPT
-A INPUT -m state --state NEW -m tcp -p tcp --dport 10022 -j ACCEPT
-A INPUT -j REJECT --reject-with icmp-host-prohibited
-A FORWARD -j REJECT --reject-with icmp-host-prohibited
COMMIT

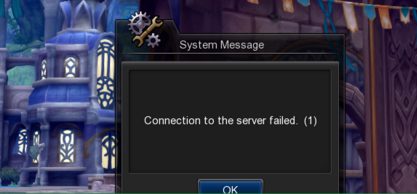

And now main issue: what here not so? I can't already understand the third day.
Help me please. Maybe I don't see something or I don't understand...

**AsunaS** · 13-02-16

Originally Posted by Jaushkin Peter

Ohh God!
I tried everything that was possible.
But I will begin setup of the server from the very beginning.

1. Ifconfig.

Here it is possible to see, that my IP address is 192.168.56.102

2. [Navicat]

2.1 FFAccount --> worlds

2.3 FFDB1 --> serverstatus

3. We modify the file connect.ini:
Server=192.168.56.102,6543

4. Now we change settings on the server:

4.1 GatewayServer --> setup.ini

4.2 HTTPAServer --> setup.ini

4.3 LoginServer --> setup.ini

4.4 TicketServer --> setup.ini

4.5 WorldServer101 --> setup.ini

4.6 WorldServer102 --> setup.ini

4.7 ZoneServer101 --> setup.ini

4.8 ZoneServer102 --> setup.ini

4.9 setup.ini

In search of a problem I decided to dig more deeply: /etc/sysconfig/iptables

And now main issue: what here not so? I can't already understand the third day.
Help me please. Maybe I don't see something or I don't understand...

can you check your error.log and post it here?

**Hulu** · 14-02-16

@Jaushkin Peter how did you change the server name? Cause mine uses the first world name.

**swiss123** · 14-02-16

Originally Posted by Jaushkin Peter

Ohh God!
I tried everything that was possible.
But I will begin setup of the server from the very beginning.

1. Ifconfig.

Here it is possible to see, that my IP address is 192.168.56.102

2. [Navicat]

2.1 FFAccount --> worlds

2.3 FFDB1 --> serverstatus

3. We modify the file connect.ini:
Server=192.168.56.102,6543

4. Now we change settings on the server:

4.1 GatewayServer --> setup.ini

4.2 HTTPAServer --> setup.ini

4.3 LoginServer --> setup.ini

4.4 TicketServer --> setup.ini

4.5 WorldServer101 --> setup.ini

4.6 WorldServer102 --> setup.ini

4.7 ZoneServer101 --> setup.ini

4.8 ZoneServer102 --> setup.ini

4.9 setup.ini

In search of a problem I decided to dig more deeply: /etc/sysconfig/iptables

And now main issue: what here not so? I can't already understand the third day.
Help me please. Maybe I don't see something or I don't understand...

Have you try connect to channel 1

**Jaushkin Peter** · 14-02-16

Originally Posted by AsunaS

can you check your error.log and post it here?

GatewayServer --> Test.log.zip

WorldServer101 --> Test.log.0214.zip

WorldServer102 --> Test.log.0214.zip

ZoneServer101 --> Test.log.0214.zip

ZoneServer102 --> Test.log.0214.zip

Originally Posted by swiss123

Have you try connect to channel 1

There is no connection with the channel 1 and the channel 2.

**Jaushkin Peter** · 14-02-16

LoginServer --> Test.log.0214.zip

Originally Posted by Hulu

@Jaushkin Peter how did you change the server name? Cause mine uses the first world name.

I didn't change a server name.

error.log:

2016/02/14 16:06:25 [Desc][LOGIN] 2016/02/14 16:06:31 [Desc][SELECT WORLD SERVER]
2016/02/14 16:06:34 [Desc]Cannot Connect to WorldSever

2016/02/14 16:06:38 [Desc]Cannot Connect to WorldSever

2016/02/14 16:06:42 [Desc]Free CZone begin...
2016/02/14 16:06:42 [Desc]Free CZone end...
2016/02/14 16:06:42 [Desc]DESTORY APP

main.log:

2016/02/14 16:06:31 [Desc]LoginServer IP: 192.168.56.101(192.168.56.101), Port 6543
2016/02/14 16:06:33 [Desc]WorldServer IP: 192.168.56.101, Port 5567

2016/02/14 16:06:34 [Desc]connect ErrCode[10035]

2016/02/14 16:06:37 [Desc]WorldServer IP: 192.168.56.101, Port 5568

2016/02/14 16:06:38 [Desc]connect ErrCode[10035]

**Kimuchan** · 14-02-16

Originally Posted by Jaushkin Peter

Spoiler:

This can help you, I was with the same error.
http://forum.ragezone.com/f939/conne...d-1-a-1094503/

**Jaushkin Peter** · 14-02-16

Originally Posted by Kimuchan

This can help you, I was with the same error.
http://forum.ragezone.com/f939/conne...d-1-a-1094503/

The problem is solved. Thank you very much!

**wapaklez** · 29-02-16

Hello. Where can I get the Pre-made Virtual Box? Server Files link is not available. Thank You :)

**Clotgooble** · 01-03-16

Link server files down, please can you re-upload?

**alfieo** · 01-03-16

can we set this up in other linux distro like debian?

**Hycker** · 01-03-16

probably yes. in ubuntu 14.04 runs fine

**alfieo** · 01-03-16

Can anyone here re upload the files, it seems that all links are dead :(

**Hulu** · 01-03-16

@Clotgooble @alfieo, I've re-uploaded the files and updated the OP's link.

- - - Updated - - -

Originally Posted by Hycker

probably yes. in ubuntu 14.04 runs fine

I've run it on ubuntu without any problems at all.

**alfieo** · 02-03-16

Thank you for doing that Hulu
