Setting up Genshin 3.2VM on Ubuntu Server

[ylwong]

Genshin 3.2 VM version a

::Genshin3.2 VM::
Vmware 15.x
8vCPU
16GB Ram
Harddisk: 80G (SSD/NVMe)
Network: NAT
OS: Ubuntu Server (genshin:Genshin2023@@)
IP Address: 192.168.200.130 (NAT)
https://i.imgur.com/Dc15XKx.png

Source: https://www.youtube.com/watch?v=ob7EFaO81NI

::Start Server::
Login: genshin
Password: Genshin2023@@

1. sudo -i (change to root)
2. /root/genshin/srv/cli start (starting game server)


::Stop Server::
1. Press Ctrl-C twice (exit dispatch console)
2. /root/genshin/srv/cli stop (stopping game server)

::Start Game::
Replace the UserAssembly.dll in Genshin\GenshinImpact_Data\Native game folder with the one in the Zip File

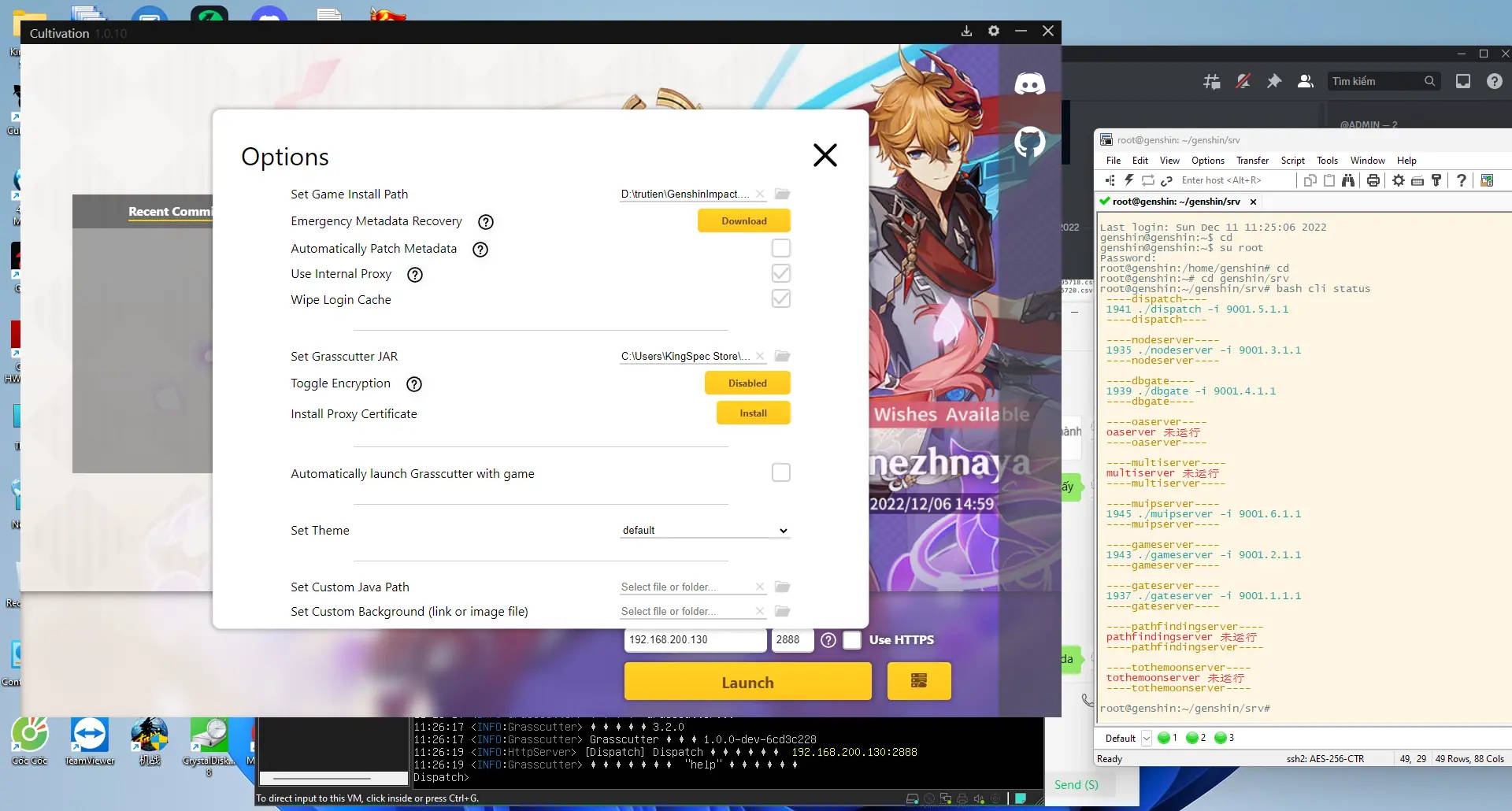

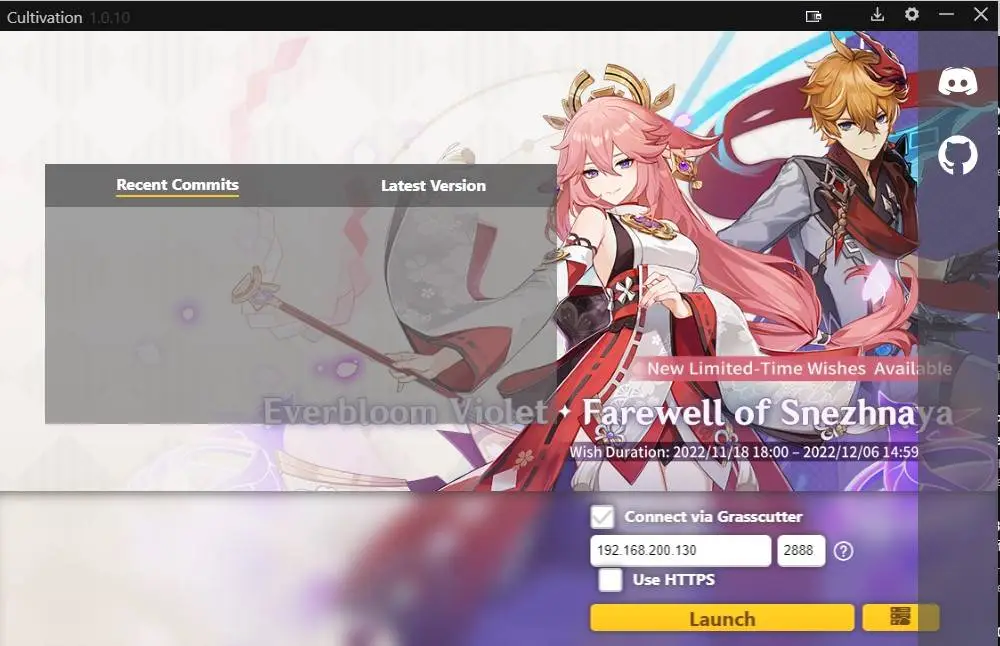

Launch Cultivation, Goto Option.
Set Game Install Path to your Genshin Game folder
Uncheck Automatically Path Metadata
Check Use Internal Proxy

Check Connect via Grasscutter
IP: 192.168.200.130
Port: 2888
Uncheck Use HTTPS

Click Launch to play.

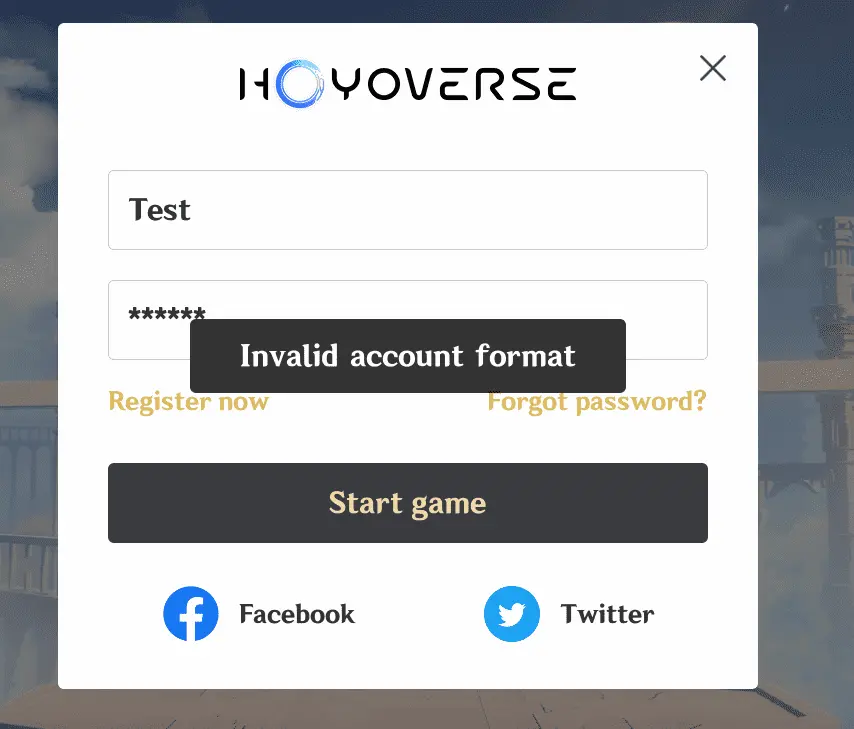

Test account
username: Test
Password: 123456


::Notes::
Following server has been disable in cli file
    # cd ../oaserver
    # chmod +x oaserver
    # nohup ./oaserver -i 9001.9.1.1 &
    # cd ../pathfindingserver
    # chmod +x pathfindingserver
    # nohup ./pathfindingserver -i 9001.8.1.1 &
    # cd ../multiserver
    # chmod +x multiserver
    # nohup ./multiserver -i 9001.7.1.1 &
    # cd ../tothemoonserver
    # chmod +x tothemoonserver
    # nohup ./tothemoonserver -i 9001.10.1.1 &

original cli file has been rename to cli-default


::Download::
VM:
GDrive: https://drive.google.com/drive/folders/18nxvLmpVXAQF2nHYJpReCSQR_I745LSd?usp=share_link
Mega.nz:  https://mega.nz/folder/4dBRGR5D#frGFO-2-1TWKmUi6SJlJMA

Password: YY1707

Client:
https://autopatchhk.yuanshen.com/client_app/download/pc_zip/20221024103618_h2e3o3zijYKEqHnQ/GenshinImpact_3.2.0.zip

Cultivation to use as Launcher:
https://github.com/Grasscutters/Cultivation/releases/
https://github.com/Grasscutters/Cultivation/releases/download/v1.0.10-alpha/Cultivation_1.0.10_x64_en-US.msi

Patched UserAssembly.dll:
Included in the Zip file

::Incorrect Server IP::

Spoiler

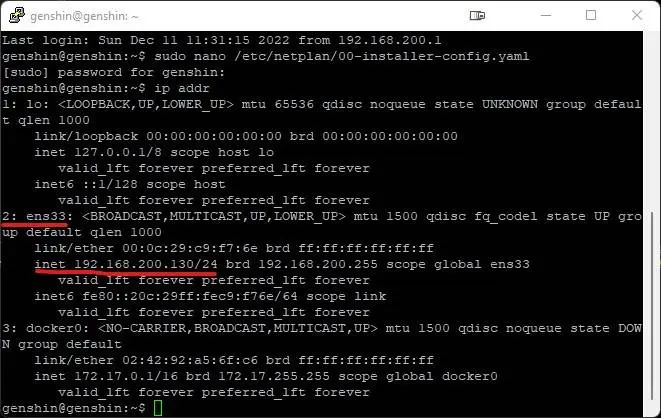

Enter this command
ip addr
to check the server IP

If the server IP is not 192.168.200.130
You have to set the IP to 192.168.200.130

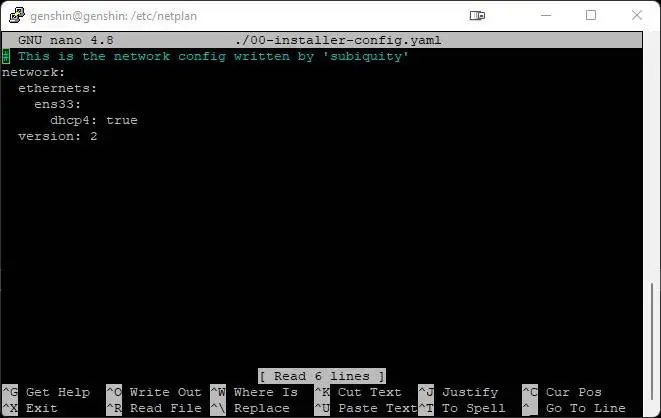

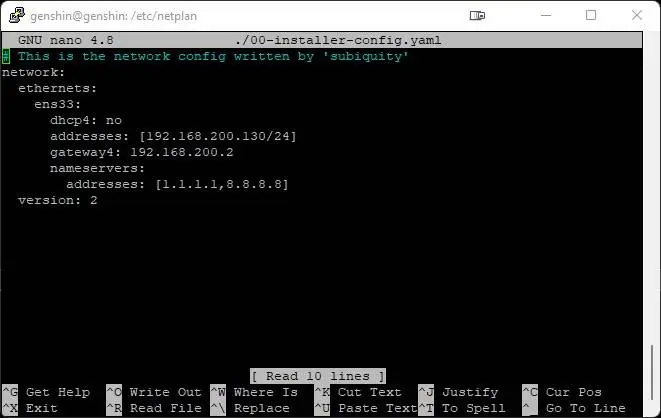

1. Edit the ip config file
sudo nano /etc/netplan/00-installer-config.yaml

2. Modify the content of the file to the one below

3. Apply the IP changes
sudo netplan --debug apply

Enter this command to check your server ip again
ip addr

It should show 192.168.200.130 now, and restart the VM.

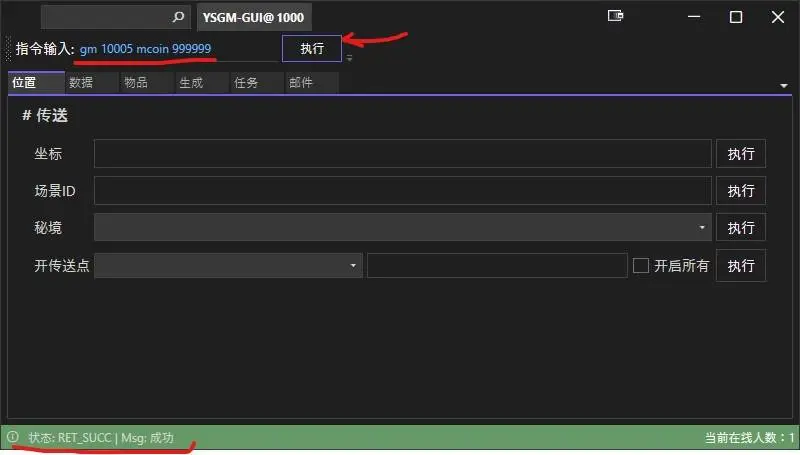

:: GM Command ::

Spoiler

Download: https://mega.nz/file/4VxRBToK#33rvoEgDBUjSLD4M5wau3c3Irmg3o0Gno2idfOBxVBI

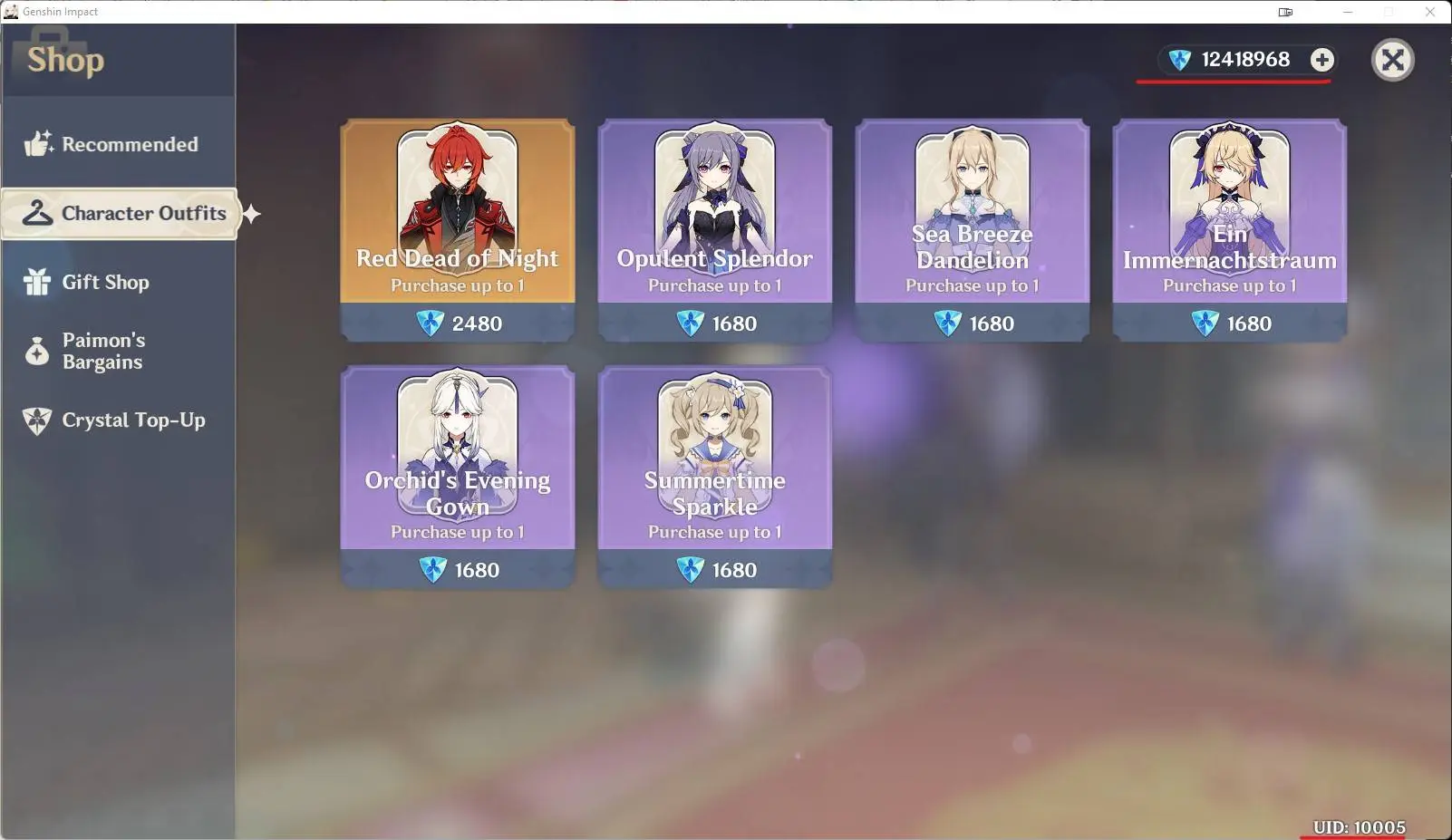

Crystal
gm uid mcoin 999999
Talent
gm uid talent unlock all
Godmode
gm uid wudi global avatar on / off
Unlimited ele brust
gm uid energy infinite on / off
Unlimited stamina
gm uid stamina infinite on / off
Send item
gm uid item add id qty

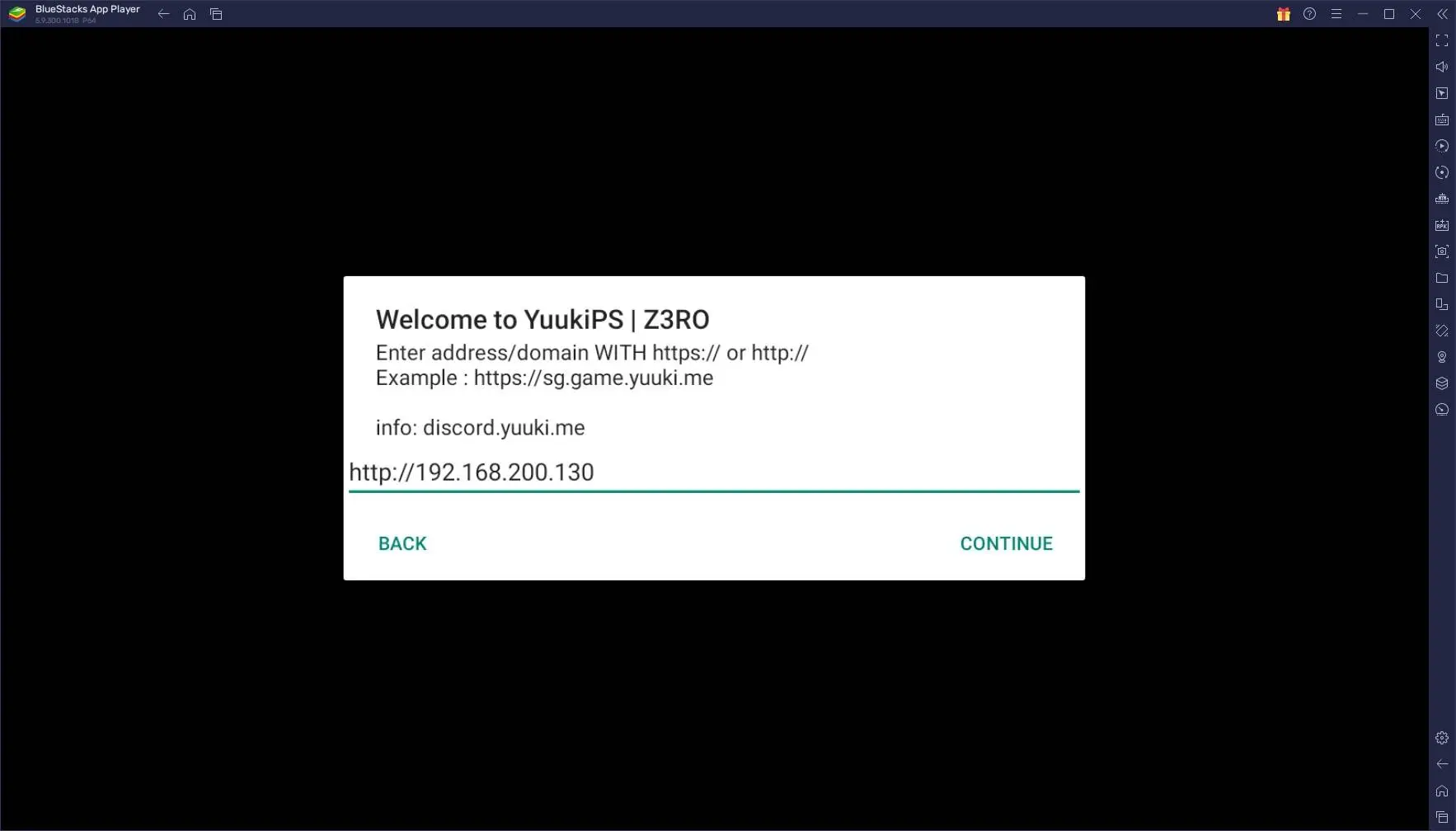

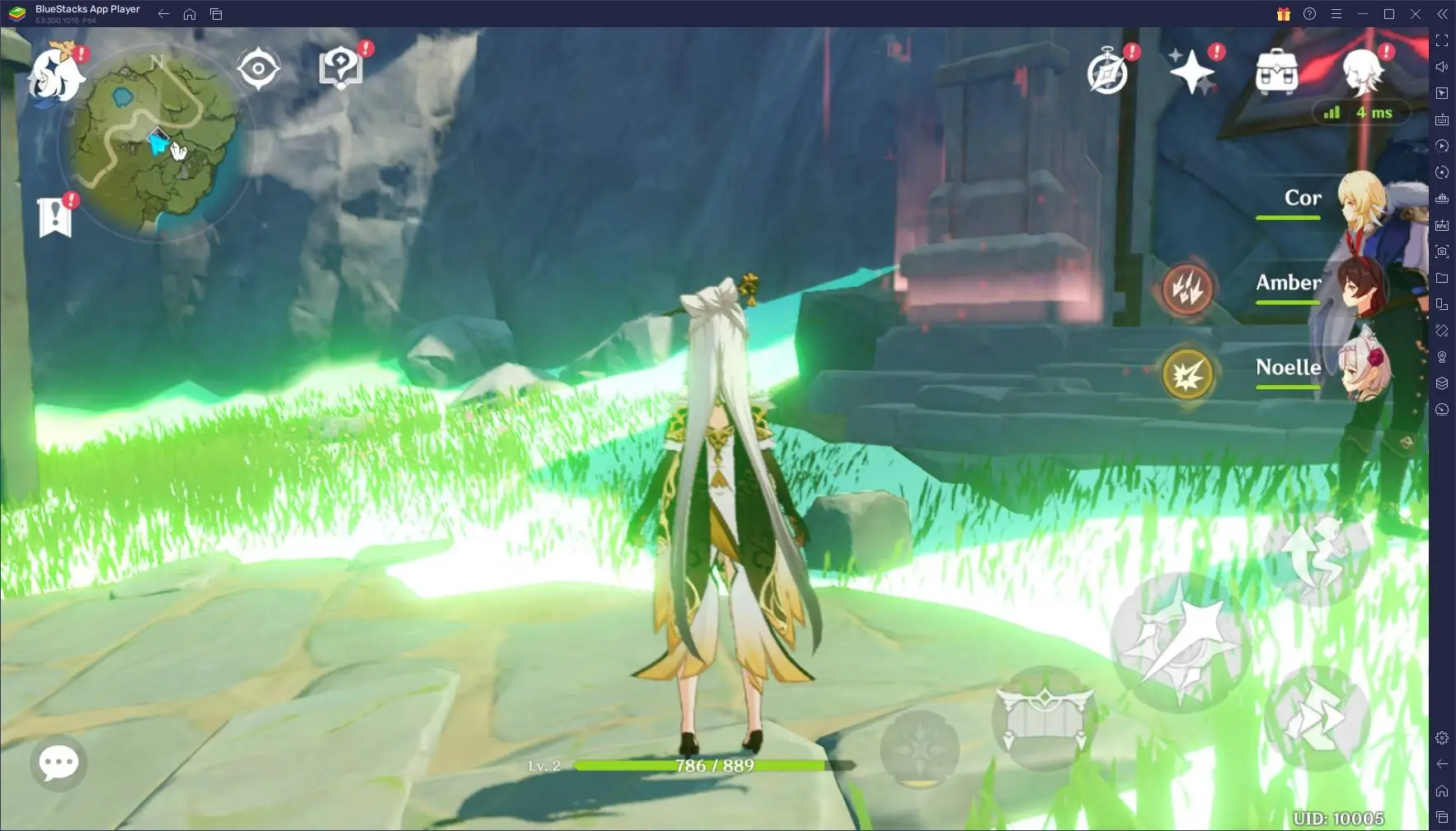

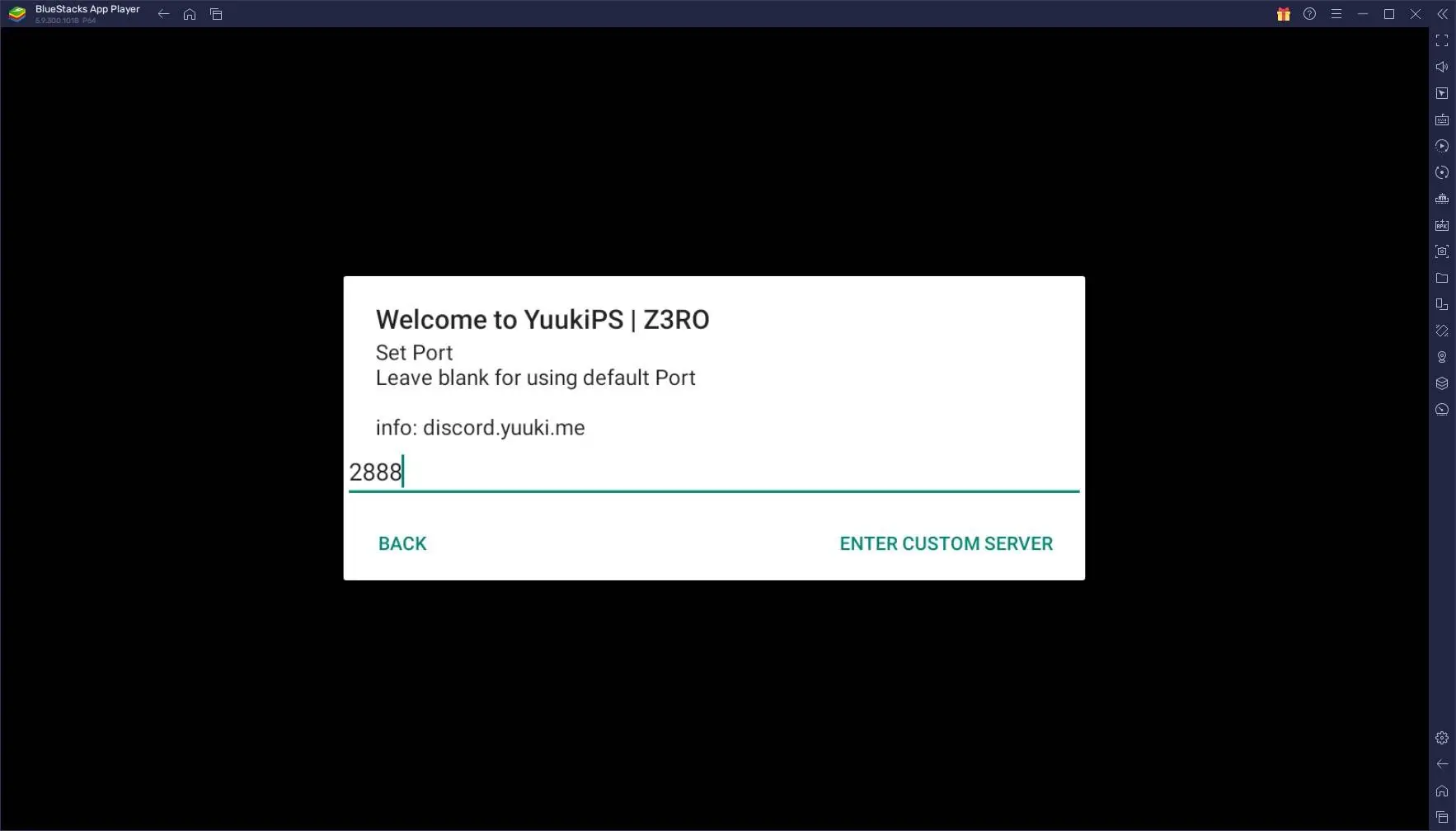

:: Android Emulator ::

Spoiler

Follow Kei's instructions on Post
https://forum.ragezone.com/f857/genshin-impact-server-files-1208797-post9154374/?#post9154374

:: WinScp and Putty

Spoiler

Download:
https://mega.nz/file/EMIWwYIQ#lnZNOcQ3_OffYNgfDxJzPwLWKhk9Rx4ttpDYsvLoqhQ

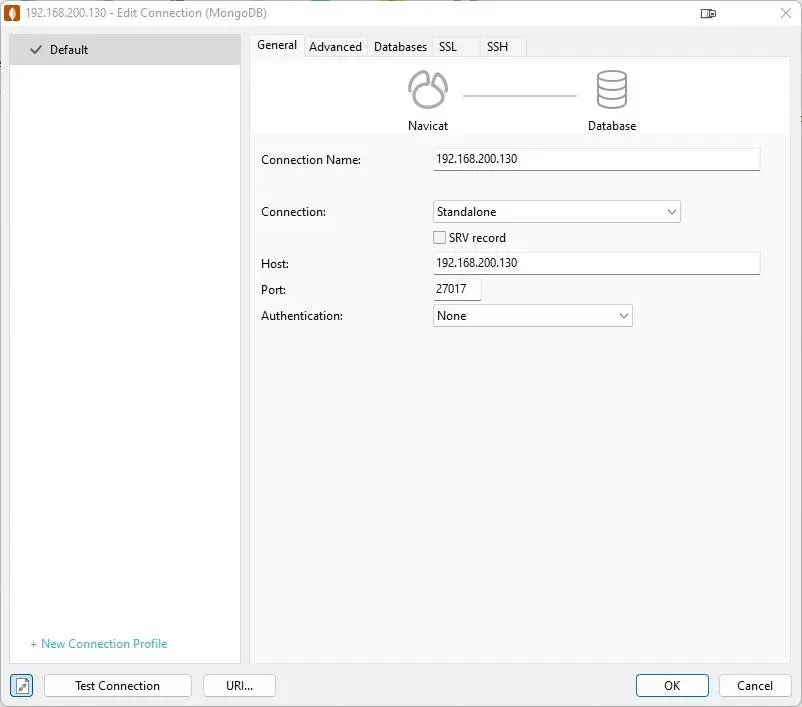

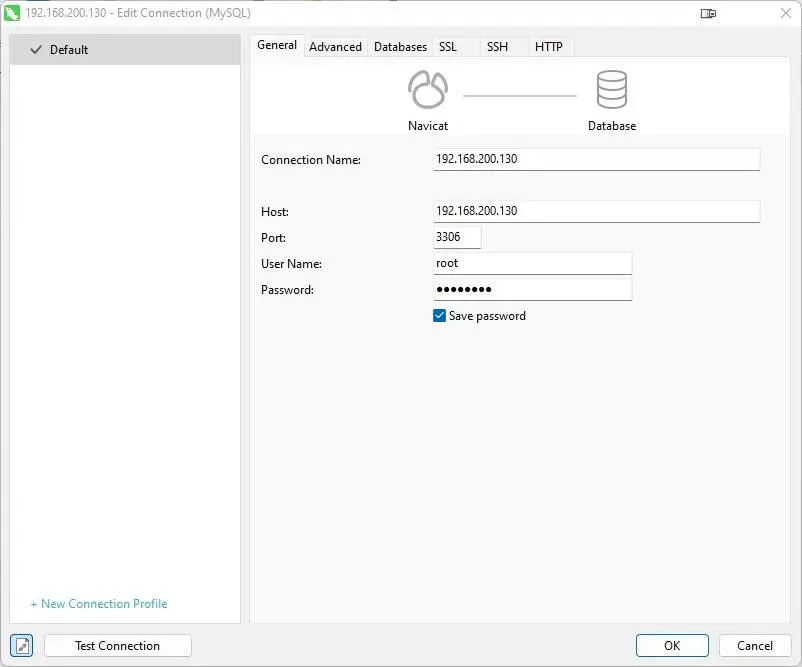

:: Navicat DB Connection ::

Spoiler

MySQL Server
User name: root
Password: f2c340a9-bf06-4345-9654-00b074b92fe8

Mongo DB

Data

::Setup Server for Wan/Public IP access::

Spoiler

Download FRP(fast reverse proxy) and genshin server config files (Password: YY1707)
https://mega.nz/file/9QhjzSTK#BhzEKs6KZ7LHxTN4iaIuk4S9jJyug-ddNrcemGlF1cM

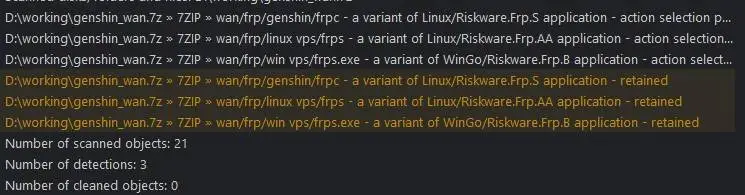

Some virus scanner will detect FRP as riskware.frp.

You can also download and use the official release from https://github.com/fatedier/frp

rerequisite:
1. A public IP address on a Windows/Linux pc/vps.
e.g. 10.11.11.11 is the public IP address

:Step:
1. extract genshin_wan.7z
2. replace 10.10.10.10 with 10.11.11.11 in all ini, xml, and json files in all folder

3. replace _secret_token_ with your own secret_token in all ini files in frp folder
4. choose you OS
4.1. Setup FRP server on windows
---- Copy folder [win vps] to your windows pc/vps.
---- Run frps.bat
---- Configure firewall rules to allow frps.exe or port number 8899 and other forwarding port number
4.2. Setup FRP server on linux
---- Copy folder [linux vps] to your linux pc/vps.
---- put frps and frps.ini under /usr/local/frps/
---- set frps to executable (755)
---- put this file (frps.service) at /etc/systemd/system
---- run "sudo systemctl daemon-reload && sudo systemctl enable frps && systemctl start frps"
---- Configure firewall rules to allow port number 8899 and other forwarding port number
---- Then you can manage frps with "sudo service frps {start|stop|restart|status}"
5. setup FRP client on genshin server
---- Copy folder [genshin] to your genshin server.
---- put frpc and frpc.ini under /usr/local/frpc/

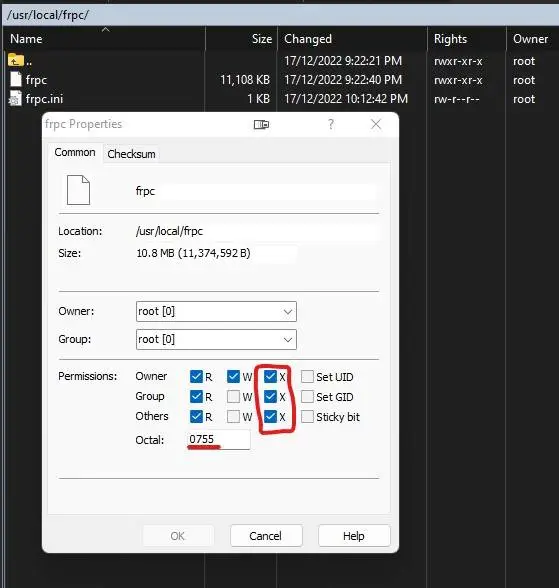

---- set frpc to executable (755)
---- put this file (frpc.service) at /etc/systemd/system
---- run "sudo systemctl daemon-reload && sudo systemctl enable frpc && systemctl start frpc"
---- Then you can manage frpc with "sudo service frpc {start|stop|restart|status}"
6. upload and overwrite all the files in [genshin] folder on to your genshin server. Start genshin server cli
---- /root/genshin/srv/cli start

Set the public IP in your launcher to
IP: 10.11.11.11
Port: 2888
Uncheck Use HTTPS

Forwarding port
TCP
2888 to 2888 (sdkserver)
20001 to 20001 (Dispatch server)
20011 to 20022 (Muip Server) set 20022 to other port if you dont want unknown ppl connecting to your GM server or remove this port from the ini file
UDP
20041 20041 (Gate Server)

::: Old Version :::

Spoiler

:: Modify Server Config File Reload Time to reduce server load. ::

Spoiler

Modify the reload time from 300 seconds (5 mins) to 36000 seconds (10 hours)

sudo -i
cd genshin/srv
find . -name "gameserver.xml" -exec sed -i "s/AutoReloadConfig interval=\"300\"/AutoReloadConfig interval=\"36000\"/g" {} +
find . -name "muipserver.xml" -exec sed -i "s/AutoReloadConfig interval=\"300\"/AutoReloadConfig interval=\"36000\"/g" {} +

:: Remove/Reduce log files ::

Spoiler

Change to root privileges
sudo -i

Change config files
nano /root/genshin/srv/gameserver/conf/gameserver.xml
nano /root/genshin/srv/muipserver/conf/muipserverxml
nano /root/genshin/srv/nodeserver/conf/nodeserver.xml

<!-- log configuration -->
<LogConf>
<LogLevelMask value="" />
<MaxLogLen value="8192" />
<LogCutTime value="1440" />
<LogKeepTime value="4320" />
<LogQueueSize value="170" />
<LogBufSize value="24576" />
<LogList>
---delete all---
</LogList>
</LogConf>

change all nohup
nano /root/genshin/srv/cli

cd nodeserver
chmod +x nodeserver
nohup ./nodeserver -i 9001.3.1.1 &
to
cd nodeserver
chmod +x nodeserver
nohup ./nodeserver -i 9001.3.1.1 &> nohup.out &

check log files
find /root/genshin/srv/ -type f \( -name 'nohup.*' -o -name '*.log*' \) -ls

delete log files
find /root/genshin/srv/ -type f \( -name 'nohup.*' -o -name '*.log*' \) -exec rm {} \;

:: Fixed Mongo DB data and DB Connection using Navicat ::

Spoiler

Fixing Account information lost and not saved into MongoDB after VM shutdown.
1. sudo -i (change to root)
2. mkdir /root/genshin/mongo_data (create data dir for mongo db)
3. nano ./docker.sh (modify docker.sh file)
change
docker run -d --net=host mongo
to
docker run -v /root/genshin/mongo_data:/data/db -d --net=host mongo
Ctrl-X to save the changes

::Make MySQL and MongoDB docker start automatically when the system boots:::

Spoiler

1. sudo -i
Delete all existing docker image containers
2. docker rm -vf $(docker ps -aq)
3. nano ./docker.sh
change
docker run -d --net=host -v /root/genshin/database_map_folder:/var/lib/mysql -e MYSQL_ROOT_PASSWORD=f2c340a9-bf06-4345-9654-00b074b92fe8 mysql:5.7-debian
docker run -v /root/genshin/mongo_data:/data/db -d --net=host mongo
to
docker run --restart=always -d --net=host -v /root/genshin/database_map_folder:/var/lib/mysql -e MYSQL_ROOT_PASSWORD=f2c340a9-bf06-4345-9654-00b074b92fe8 mysql:5.7-debian
docker run --restart=always -v /root/genshin/mongo_data:/data/db -d --net=host mongo
Ctrl-X to save the changes
4. bash docker.sh
(rename the docker.sh file to avoid being run again in future)
5. mv docker.sh docker.bak



[TieLay]

plz, anyone upload to mega...



[what]

plz, anyone upload to mega...

https://forum.ragezone.com/f857/genshin-impact-server-files-1208797/index21.html#post9153341



[ylwong]

plz, anyone upload to mega...

Added Mega.nz Mirror
https://mega.nz/folder/4dBRGR5D#frGFO-2-1TWKmUi6SJlJMA



[what]

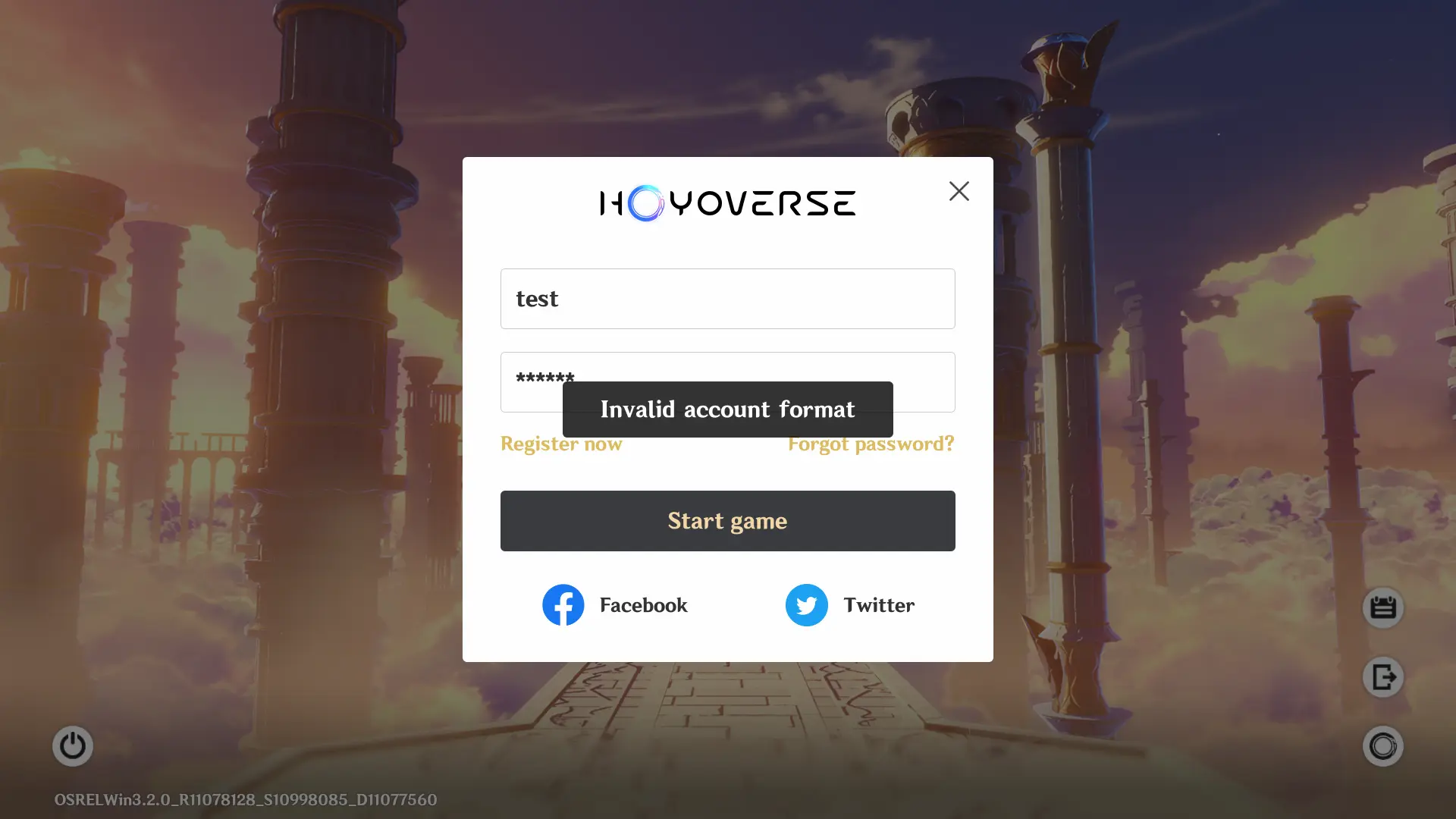

How to fix?



[ylwong]

How to fix?

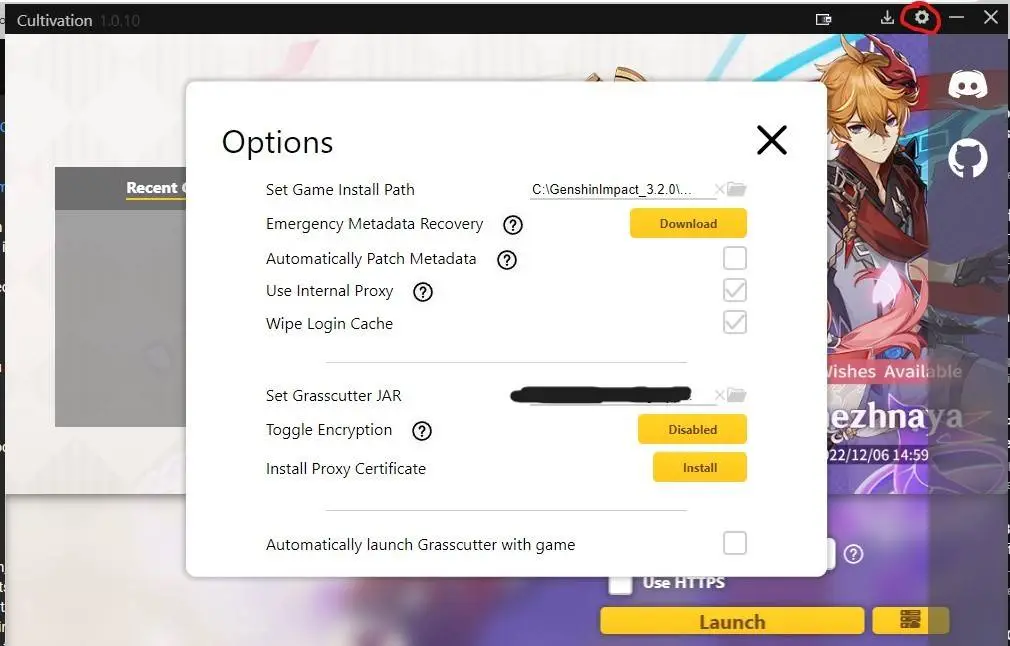

Cultivation launcher, Goto Option.
Check Use Internal Proxy



[jorgexxx1978cc]

Cultivation launcher, Goto Option.
Check Use Internal Proxy

Can the client run in an area where there is no internet connection? Or does it only run with a permanent internet connection?



[what]

Cultivation launcher, Goto Option.
Check Use Internal Proxy

not working



[ylwong]

Can the client run in an area where there is no internet connection? Or does it only run with a permanent internet connection?

Should be working fine without Internet connection, just need to have local area network access.

not working

Did you patch the UserAssembly.dll file?
If you did and still have issues, then I have no idea what's wrong.



[jorgexxx1978cc]

Should be working fine without Internet connection, just need to have local area network access.


Did you patch the UserAssembly.dll file?
If you did and still have issues, then I have no idea what's wrong.

In this VM server are there monsters on the map and can you do quests?



[what]

Should be working fine without Internet connection, just need to have local area network access.


Did you patch the UserAssembly.dll file?
If you did and still have issues, then I have no idea what's wrong.

i dont know

how to create new account? i want try



[llenn]

GG Goodwork



[ylwong]

i dont know

how to create new account? i want try

Enter this command
ip addr
to check the server IP

If the server IP is not 192.168.200.130
You have to set the IP to 192.168.200.130

1. Edit the ip config file
sudo nano /etc/netplan/00-installer-config.yaml

2. Modify the content of the file to the one below

3. Apply the IP changes
sudo netplan --debug apply

Enter this command to check your server ip again
ip addr

It should show 192.168.200.130 now, and restart the VM.



[lawful]

This server can friend login? Im all server on and bridge setting
friend login but client error 4206 show and fail
Look grasscutter log friend login token is ok why?

and thank you for your efforts



[popoii]

Is this files playing normally work? everything work?



[ylwong]

This server can friend login? Im all server on and bridge setting
friend login but client error 4206 show and fail
Look grasscutter log friend login token is ok why?

and thank you for your efforts

This VM is NAT mode, only support local PC.

Is this files playing normally work? everything work?

Game Quest working.
I'm not sure if everything else is fully working.



[what]

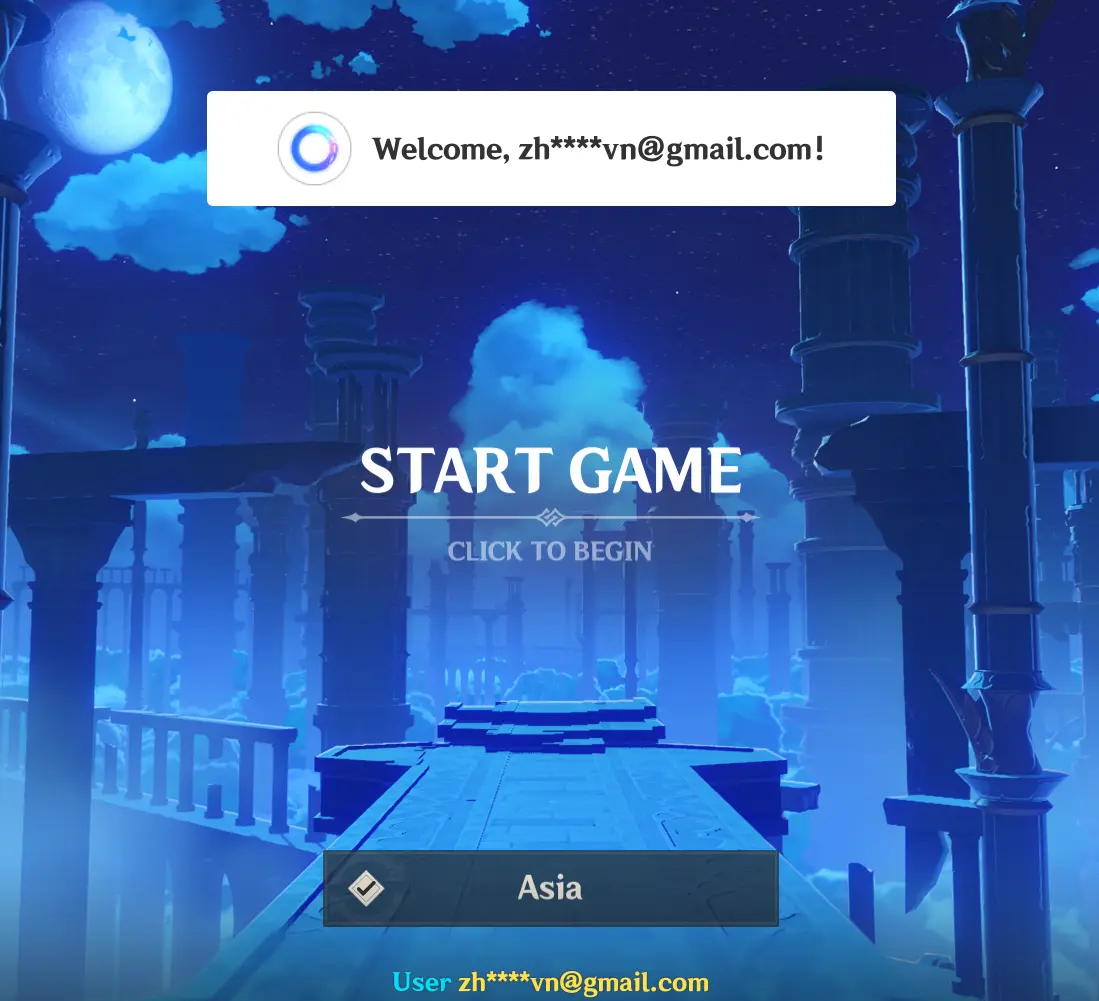

maybe my PC wrong, i can not load Cultivation with double click(run as admin OK)
i can login with official myhoyo account or facebook account but error

sr my english verybad



[ylwong]

maybe my PC wrong, i can not load Cultivation with double click(run as admin OK)
i can login with official myhoyo account or facebook account but error


sr my english verybad

I believe you skipped the step where you should have
"Replace the UserAssembly.dll in Genshin\GenshinImpact_Data\Native game folder with the one in the Zip File"

Your Login error appears to be caused by the game connecting to the live server.



[what]

I believe you skipped the step where you should have
"Replace the UserAssembly.dll in Genshin\GenshinImpact_Data\Native game folder with the one in the Zip File"

Your Login error appears to be caused by the game connecting to the live server.

i do anything but error



[ylwong]

i do anything but error

You could try uninstalling Cultivation and reinstalling it to see if the Cultivation problem persists.
