Hello, im currently planning on setting up my own rf local server using my laptop
this is the specs
System Information
---------------------------------------------------------------------------
Time of this report: 11/5/2012, 18:06:51
Machine name: VALKYRIE
Operating System: Windows 7 Ultimate 64-bit (6.1, Build 7601) Service Pack 1
Language: English (Regional Setting: English)
System Manufacturer: ASUSTeK Computer Inc.
System Model: G74Sx
BIOS: BIOS Date: 08/15/11 10:49:00 Ver: 04.06.03
Processor: Intel(R) Core(TM) i7-2670QM CPU @ 2.20GHz (8 CPUs), ~2.2GHz
Memory: 12288MB RAM
Available OS Memory: 12266MB RAM
Page File: 9064MB used, 15464MB available
Windows Dir: C:\Windows
DirectX Version: DirectX 11
DX Setup Parameters: Not found
User DPI Setting: Using System DPI
System DPI Setting: 120 DPI (125 percent)
DWM DPI Scaling: UnKnown
---------------------------------------------------------------------------
I also have installed and configured all of the tools and software according to RF 2.2.3.2 Local server setup guide.pdf
Guest OS (running RF server): Using VMware version 9
2 core processor
5.5GM RAM
Windows Server 2008 R2 x64
40GB HDD
Network IP:192.168.44.129
installed microsoft sql server enterprise 2008 r2 x64
installed vcredist_x64
The server files that I use is version 2.2.3.2
The client is Rf Philippines
Rf Dependency files installed on the server using default installation
( I cant understand cause its korean language i think )
Network IP of the computer (windows 7 ultimate 64 bit)
-192.168.197.1 subnet 255.255.255.0
\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
The guest OS and the Computer is connected via virtual network. as you can see in the picture provided.
\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
all is going well until this step from the pdf file
--------------------------------------------------------------------------------------------
Server configuration modification (see appendix for this servers configuration files)
Setup RF ini (Account and Login\RF_Bin\Initialize\[Account|Billing|Login]System.ini, ZoneServer\WorldInfo\WorldInfo.ini, ZoneServer\RF_Bin\Initialize\WorldSystem.ini, rfacc.ini
change IPs
change database details
change WorldInfo.ini servertype to 0.
Note the HBK & History path: create these directories.
-------------------------------------------------------------------------------------------
When i click zone server and say yes. this is what happens.
I really need help at this part guys. I dont know if I modified the .ini files correctly
Thanks in advance!![Homer Drooling :drool: :drool:](/data/assets/smilies/drool.gif)
![Homer Drooling :drool: :drool:](/data/assets/smilies/drool.gif)
![Homer Drooling :drool: :drool:](/data/assets/smilies/drool.gif)
Here is my AccountSystem.ini
My BillingSystem.ini
My Login_Filter_Dev.ini
My LoginSystem.ini
My rfacc.ini
My WorldInfo.ini
My WorldSystem.ini
Some other screenshots ( hope it can help )
reached maximum attachment
this is the specs
System Information
---------------------------------------------------------------------------
Time of this report: 11/5/2012, 18:06:51
Machine name: VALKYRIE
Operating System: Windows 7 Ultimate 64-bit (6.1, Build 7601) Service Pack 1
Language: English (Regional Setting: English)
System Manufacturer: ASUSTeK Computer Inc.
System Model: G74Sx
BIOS: BIOS Date: 08/15/11 10:49:00 Ver: 04.06.03
Processor: Intel(R) Core(TM) i7-2670QM CPU @ 2.20GHz (8 CPUs), ~2.2GHz
Memory: 12288MB RAM
Available OS Memory: 12266MB RAM
Page File: 9064MB used, 15464MB available
Windows Dir: C:\Windows
DirectX Version: DirectX 11
DX Setup Parameters: Not found
User DPI Setting: Using System DPI
System DPI Setting: 120 DPI (125 percent)
DWM DPI Scaling: UnKnown
---------------------------------------------------------------------------
I also have installed and configured all of the tools and software according to RF 2.2.3.2 Local server setup guide.pdf
Guest OS (running RF server): Using VMware version 9
2 core processor
5.5GM RAM
Windows Server 2008 R2 x64
40GB HDD
Network IP:192.168.44.129
installed microsoft sql server enterprise 2008 r2 x64
installed vcredist_x64
The server files that I use is version 2.2.3.2
The client is Rf Philippines
Rf Dependency files installed on the server using default installation
( I cant understand cause its korean language i think )
Network IP of the computer (windows 7 ultimate 64 bit)
-192.168.197.1 subnet 255.255.255.0
\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
The guest OS and the Computer is connected via virtual network. as you can see in the picture provided.
![004 - Rf online 2.2.3.2 server setup - RaGEZONE Forums 004 - Rf online 2.2.3.2 server setup - RaGEZONE Forums](https://forum.ragezone.com/data/attachments/70/70558-0f1dcdb2d9c35dfeb967d04fc8a1e219.jpg)
\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
all is going well until this step from the pdf file
--------------------------------------------------------------------------------------------
Server configuration modification (see appendix for this servers configuration files)
Setup RF ini (Account and Login\RF_Bin\Initialize\[Account|Billing|Login]System.ini, ZoneServer\WorldInfo\WorldInfo.ini, ZoneServer\RF_Bin\Initialize\WorldSystem.ini, rfacc.ini
change IPs
change database details
change WorldInfo.ini servertype to 0.
Note the HBK & History path: create these directories.
-------------------------------------------------------------------------------------------
![005 - Rf online 2.2.3.2 server setup - RaGEZONE Forums 005 - Rf online 2.2.3.2 server setup - RaGEZONE Forums](https://forum.ragezone.com/data/attachments/70/70584-45d1fe683d50913180c3ba842d9099ba.jpg)
![002 - Rf online 2.2.3.2 server setup - RaGEZONE Forums 002 - Rf online 2.2.3.2 server setup - RaGEZONE Forums](https://forum.ragezone.com/data/attachments/70/70537-8f675e07d589b4029e14077c8ee1b8b9.jpg)

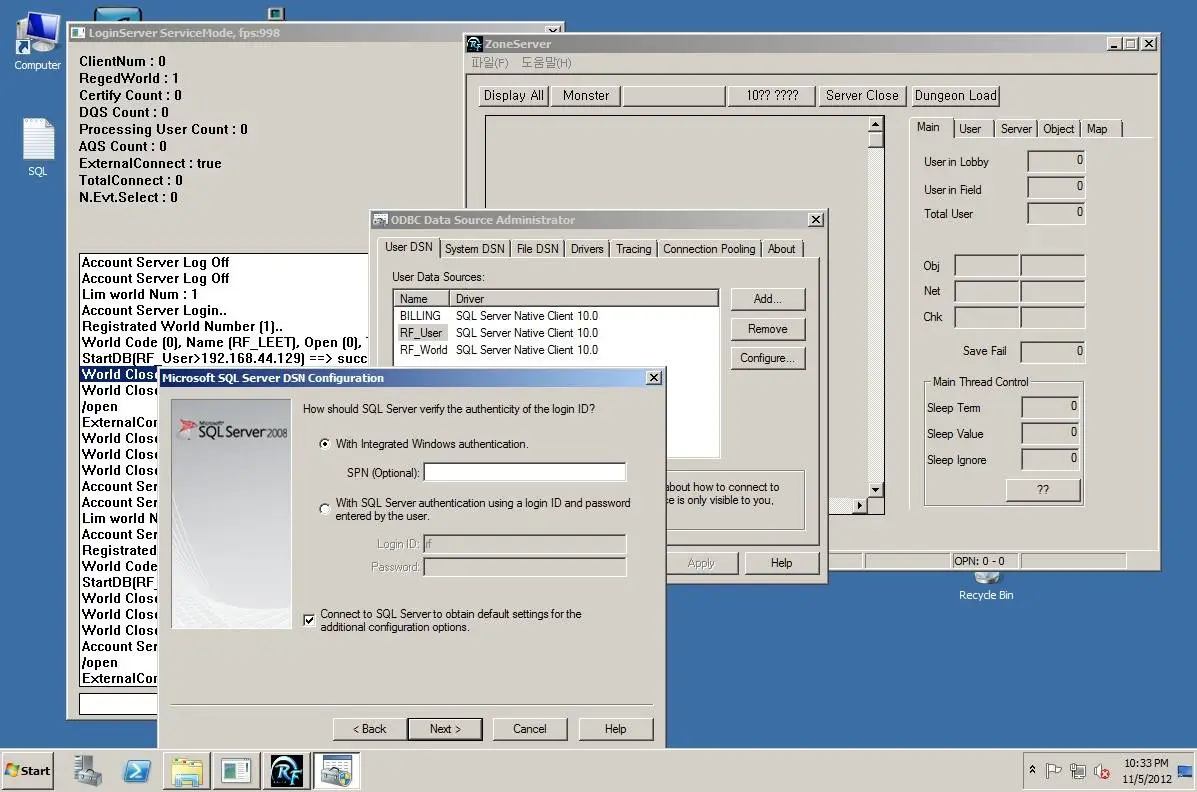

When i click zone server and say yes. this is what happens.
![003 - Rf online 2.2.3.2 server setup - RaGEZONE Forums 003 - Rf online 2.2.3.2 server setup - RaGEZONE Forums](https://forum.ragezone.com/data/attachments/70/70544-9d5f2be9ecf0e2ba653079736f695673.jpg)
I really need help at this part guys. I dont know if I modified the .ini files correctly
Thanks in advance!
![Homer Drooling :drool: :drool:](/data/assets/smilies/drool.gif)
![Homer Drooling :drool: :drool:](/data/assets/smilies/drool.gif)
![Homer Drooling :drool: :drool:](/data/assets/smilies/drool.gif)
Here is my AccountSystem.ini
Code:
[Database]
AccountDB_Machine = 192.168.44.129
AccountDB_Name = RF_User
[System]
NationCode = RU
[DB_INFO]
IP = 127.0.0.1
Port = 1433
DBName = BILLING
Acc = sa
PW = SA1password
[Service]
MaxAccountNum = 1337
[World]
WorldSet_Num =1
ServiceSet_Num = 0
Name0 = RF_LEET
Address0 = 192.168.44.129
DBName0 = RF_World
Type0 = 0
My BillingSystem.ini
Code:
[System]
ZoneAddress = 192.168.44.129
NationCode = RU
[BILLING]
SERVER_NAME = BILLING
IP = 192.168.44.129
PORT = 1433
CP_ID = 1
GROUP_NUM = 1
SERVER_NUM = 1
GAME_ID = 1
My Login_Filter_Dev.ini
Code:
[IPAddress]
FilterNum = 0
Filter0 = 192.168.44.129
FilterRange0 = 255
[ID]
FilterNum = 8
Filter0 = !teste
My LoginSystem.ini
Code:
[Account]
AccountAddress = 192.168.44.129
[System]
NationCode = RU
[CHECK ADDRESS]
CHECK = TRUE
[LOG]
AUTH_LOG = TRUE
[World]
Lim World Num = 1
DB Push Job = 0
[BILLING]
Check = FALSE
BillingCode = 78
[MOTP]
Service = FALSE
HostName = Let.Tom.Ru
HostIP = ÂÀØ IP
URLPath = /MOTPValidation/ValidationServlet
Port = 12380
[IP Address Filter]
FilterNum = 0
Filter0 = 192.168.0.10
FilterRange0 = 255
[UserCountDisplyLimit]
Limit0 = 500
Limit1 = 1200
Limit2 = 2700
[BILL_RU]
DBName = BILLING
DBIP = 192.168.44.129
DBAccount = sa
DBPassword = SA1password
DBPort = 1433
My rfacc.ini
Code:
[Options]
DBSTR = Driver={SQL Server Native Client 10.0};Server=127.0.0.1\SQLEXPRESS;Database=BILLING;Uid=rf;Pwd=rfpass;
ErrDBSTR =
LogLevel = 2
My WorldInfo.ini
Code:
[System]
WorldName = RF_LEET
ServerType = 0
BillingCode = 1
BillOper = 1
FreeServer = 1
HBKPath = C:\Work\HBK
HistoryPath = C:\Work\History
NationCode = US
GateIP = 86.110.188.94
Address = 86.110.188.94
; ServerType = 1 ÀÎ °æ¿ì(Á¤½Ä Å×¼·ÀÎ °æ¿ì)
; BuyCashItemByGold ¼³Á¤Àº °Á¦·Î true·Î º¯°æ(°ñµå±¸¸Å)µÈ´Ù.
; ServerType = 1 ÀÌ ¾Æ´Ñ °æ¿ì(Á¤½Ä Å×¼·ÀÌ ¾Æ´Ñ °æ¿ì)
; BuyCashItemByGold ¼³Á¤(°ñµå ±¸¸Å) ¼³Á¤Àº ±×´ë·Î Àû¿ëµÈ´Ù.
; ReleaseType = Internal : »ç³»¿ë ¸ðµå( °³Ã¼ ÇÒ´ç¼ö ÃÖ¼Ò Ã³¸®µÊ, ¼ºñ½º¿ë ·çƾµé ó¸® ¾ÈµÈ )
: ReleaseType = Release : Á¤½Ä ¼ºñ½º¿ë ¸ðµå( ½ÇÁ¦ ¼ºñ½º¿¡ ÇÊ¿äÇÑ ÇÒ´ç¼ö·Î 󸮵Ê, ¼ºñ½º¿ë ·çƾµé ó¸®µÊ )
; ExcuteService = true : ½Ã½ºÅÛ ¸Þ´ÏÁ®Åø·Î ¼ºñ½º·Î µî·ÏÇؼ ¹é±×¶ó¿îµå·Î ¼¹ö ½ÇÇà( ¼¹ö ¿¡·¯ ¸Þ¼¼Áö ¹Ú½º Ãâ·Â ÆÄÀϷΠó¸® )
; ExcuteService = false : Á÷Á¢ ¼¹ö ½ÇÇà ÆÄÀÏ·Î ½ÇÇà Æ÷±×¶ó¿îµå ½ÇÇà( ¼¹ö ¿¡·¯ ¸Þ¼¼Áö ¹Ú½º Ãâ·Â )
[ServerMode]
; °ñµå ±¸¸Å ¿©ºÎ
BuyCashItemByGold = false
; »ç³»¿ë ¶Ç´Â Á¤½Ä ¼ºñ½º¿ë ¸ðµå ( Internal, Release )
ReleaseType = Release
; ¼¹ö ½ÇÇà ¸ðµå ¼ºñ½º µî·Ï ½ÇÇàÀÎÁö ¿©ºÎ
ExcuteService = true
[Rule]
//µðÆúÆ® (Ä¡Æ®·Î ¹ß»ý½ÃŲ Å©¸®½ºÅп¡ »ç¿ë)
CrystalHPMultiple = 1.0
//ÇϷ縦 ±âÁØÀ¸·ÎÇÑ °¢ Â÷¼öº° Å©¸®½ºÅÐ HP¹èÀ²
CrystalHPMultiple_1 = 5.0
CrystalHPMultiple_2 = 8.0
CrystalHPMultiple_3 = 11.0
[GUILD CREATE EVENT]
;À̺¥Æ® È°¼º ¿©ºÎ
Enable = FALSE
;½ÃÀÛ ³¯Â¥
START_DATE = 20100309
;Á¾·á ³¯Â¥
END_DATE = 20120120
; ±¹°¡ÄÚµå ISO 3166( ISO ALPHA-2ÀÚ¸® ±¹°¡ÄÚµå ) ÁöÁ¤µÇ¾î ÀÖ´Â ±¹°¡ÄÚµå
; KR Çѱ¹
; GB ¿µ±¹
; ID Àεµ
; JP ÀϺ»
; PH Çʸ®ÇÉ
; RU ·¯½Ã¾Æ
; BR ºê¶óÁú
; TW ŸÀÌ¿Ï
; CN Áß±¹
; US ¹Ì±¹(ºÏ¹Ì½Ã¿¡µµ »ç¿ë)
; TH ű¹
My WorldSystem.ini
Code:
[System]
;AccountAddress = 10.1.60.195
AccountAddress = 192.168.44.129
LimUserNum = 5050
[MainThread]
SleepTerm = 1
SleepValue = 4000
SleepIgnore = 0
[Messenger]
Use = TRUE
[RankJob]
JobHour = 23
JobMin = 40
[Rule]
AttackSpareDelay = 200
[Economy]
Default_MgrVal =1000
Default_TaxVal =10
;Default_OreVal =10000
Default_OreVal =3500
2004/6/19_MgrVal = 1000
2004/6/19_TaxVal = 10
[HolySystem]
KeeperCreateMap = resources
KeeperCreateDummy = dk0001
KeeperActiveDummy = hskactdum
KeeperCenterDummy = dk0001
KeeperMonrCode = 04903
StoneNum = 3
StoneCreateMap0 = resources
StoneCreateDummy0 = dh001
StoneMonsterCode0 = 04B00
StoneMasterRace0 = 0
StoneCreateMap1 = resources
StoneCreateDummy1 = dh002
StoneMonsterCode1 = 04B01
StoneMasterRace1 = 1
StoneCreateMap2 = resources
StoneCreateDummy2 = dh003
StoneMonsterCode2 = 04B02
StoneMasterRace2 = 2
QuestInit=1
[Schedule]
ScheduleInit=0
[Formula]
StdDefPoint=3
RcvDefPoint=10
[Buddha Event]
;ÁøÇà¿©ºÎ
Enable = TRUE
;Áö±Þ ¾ÆÀÌÅÛ(ÇÁ¸®¹Ì¾öÄ«µå)
GiveItem = irjad04
;»èÁ¦ ¾ÆÀÌÅÛ(ÇÁ¸®¹Ì¾öÄ«µå)
ExchangeItem = irpre01
;ÀÌÀü À̺¥Æ® ±³È¯±Ç
DeleteItem1 =
;ÀÌÀü À̺¥Æ® Áö±Þ ¾ÆÀÌÅÛ
DeleteItem2 =
[CLASS REFINE EVENT]
;À̺¥Æ® È°¼º ¿©ºÎ
ENABLE = TRUE
;½ÃÀÛ ³¯Â¥
START_DATE = 20100310
;Á¾·á ³¯Â¥
END_DATE = 20100330
;¹«·á ¸®ÆÄÀÎ Ä«¿îÆ®
LIMIT_COUNT = 1
[PcBang Favor]
;PC¹æ ÇýÅà ¾ÆÀÌÅÛ Áö±Þ ¼³Á¤ (FALSE->¹Ì»ç¿ë, TRUE->»ç¿ë)
USE = TRUE
[System]
;ÇǷεµ ½Ã½ºÅÛ ¼³Á¤Ãß°¡
[Time Limit]
Use = FALSE
;½Ã°£ Á¦ÇÑ ´Ü°è ¼ö
CNT = 3
;½Ã°£ Á¦ÇÑ 1´Ü°è(¼öÀÍÀÇ Percent0 ¸¸Å ȹµæ, ´ÜÀ§ ºÐ) - Ç×»ó 0 À̾î¾ß ÇÑ´Ù.
Time_0 = 0
;½Ã°£ Á¦ÇÑ 2´Ü°è(¼öÀÍÀÇ Percent1 ¸¸Å ȹµæ, ´ÜÀ§ ºÐ)
Time_1 = 300
;½Ã°£ Á¦ÇÑ 3´Ü°è(¼öÀÍÀÇ Percent2 ¸¸Å ȹµæ, ´ÜÀ§ ºÐ)
Time_2 = 500
;½Ã°£ Á¦ÇÑ 1´Ü°è¿¡¼ Àû¿ëµÇ´Â ¼öÀÍ È¹µæ ·®
Percent_0 = 1.0
;½Ã°£ Á¦ÇÑ 2´Ü°è¿¡¼ Àû¿ëµÇ´Â ¼öÀÍ È¹µæ ·®
Percent_1 = 0.5
;½Ã°£ Á¦ÇÑ 3´Ü°è¿¡¼ Àû¿ëµÇ´Â ¼öÀÍ È¹µæ ·®
Percent_2 = 0.0
;·Î±×¾Æ¿ô ÈÄ ¾ó¸¶³ª ½Ã°£ÀÌ Áö³ª¾ß ´Ù½Ã Á¤»óÀûÀ¸·Î °ÔÀÓ ÇÒ ¼ö ÀÖ´ÂÁö¿¡ ´ëÇÑ ½Ã°£ °£°Ý(´ÜÀ§ ºÐ)
LogoutTerm = 10
;¾ó¸¶¸¸ÅÀÇ ½Ã°£ °£°ÝÀ¸·Î ÁøÇà ½Ã°£À» Ŭ¶óÀ̾ðÆ®¿¡ Àü´Þ ÇÒÁö¿¡ ´ëÇÑ ½Ã°£ °£°Ý(´ÜÀ§ ºÐ)
NotifyTerm = 2
[VersionCheck]
;Ver_CheckKey = 4cd89361876d5dbe2d9abfb79951079f - 5¿ù 18ÀÏ º¯°æ
;Ver_CheckKey = 69a4038868c8a2e5c24bc9760f360e4f - 6¿ù 14ÀÏ º¯°æ
;Ver_CheckKey = 2092c70681144ec40b8ca27ee4d79540 - 7¿ù 7ÀÏ º¯°æ
;Ver_CheckKey = 411245623aff770e230654f29e3e5d87 - 7¿ù 19ÀÏ º¯°æ(Àå¾Ö³ª¼ º¯°æ)
;Ver_CheckKey = 8cd8aab1551122715050d8eedc3b511b - 8¿ù 4ÀÏ º¯°æ
;Ver_CheckKey = 98d12740c527fde4514d46d2a3869c63 - 8¿ù 4ÀÏ º¯°æ(Àå¾Ö)
;Ver_CheckKey = 8cd8aab1551122715050d8eedc3b511b - 8¿ù 9ÀÏ º¯°æ
;Ver_CheckKey = 98d12740c527fde4514d46d2a3869c63 - 8¿ù 10ÀÏ º¯°æ
;Ver_CheckKey = a1acbc0562a1372dcca375865f6cc98a - 9¿ù 26ÀÏ º¯°æ
;Ver_Checkkey = f69e40dcb39fb9d24c05c60a1b5398c4 - 10¿ù 29ÀÏ º¯°æ
Ver_Checkkey = 75ancuxa6daff548fcfcb40fea838a0d
Some other screenshots ( hope it can help )
![006 - Rf online 2.2.3.2 server setup - RaGEZONE Forums 006 - Rf online 2.2.3.2 server setup - RaGEZONE Forums](https://forum.ragezone.com/data/attachments/70/70601-9a8f0a385baf304e5ec52a4bd3ad0666.jpg)
reached maximum attachment
